SPIRE X2 CPU chladič ECLIPSE ADVANCED 991, univerzální
Cooler type:Active; Cooler utilization:CPU
Particulars
All new universal, silent heat-pipe CPU coolers. The ECLIPSE ADVANCED series micro-processor coolers are universal towering heat-pipe heat-sinks including one silent 12cm cooling fans ideally suited for those who require more performance and durability. One of the nice things about this series processor coolers is the universal build which enables it to be compatible with all processors such as the AMD, AM2, AM3, AM4, FM1, FM2 and the Intel LGA775/i3/i5/i7 and LGA2011 /1510/1511 models. Build with four copper heat-pipes with a diameter of 6mm which not only boost the performance but also make an impressive appearance. Pre-installed one 12cm silent PWM fan. The fans are mounted with wire-clips which are easy to remove and put back for maintanace or configuration change.
Features:
- Pitch black matt coated heat-sink
- Four (4) 6mm all copper U-shaped heat-pipes.
- One silent 12x2.5cm PWM cooling fans included
- High Quality, Long MTBF, Pulse-width modulation controlled
- Anti-vibe rubber fan corners and metal wire-clips
- Supports AM2/AM3/AM4/FM1/FM2 socket and 775/ i3/i5/LGA2011/1150/1151
- Best cooling performance up to 150W TDP
- 2 years manufacturer warranty
Specifications:
| Unit Weight | 740g |
| Unit Dimension (cm) | 12.75 x 5.3 x 15.59 |

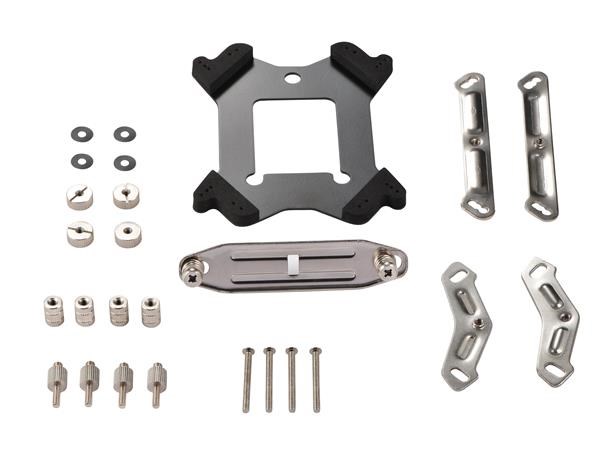

| Accessories | Installation set for Intel 775/115*/1366/AMD-AM3/AM4/FM1/FM2 |
| Air Flow (CFM) | 45.26 |
| Application |
|
| Bearing Type | Sleeve Bearing |
| Cable Length | 30CM |
| Cable Type | Sleeved |
| Certification | CE/WEEE/RoHS/REACH |
| Color | BLACK |
| Connectors | 4 PIN PWM Molex 2510 |
| Fan Size (cm) | 12 x 12 x 5 |
| Fan Type | DC 12V silent PWM series |
| Fits Socket Types | Intel,AMD |
| Intel | 775,115x,1366,2011 |
| AMD | AM2,AM3,AM4,FM1,FM2 |
| Life Expectancy (HRS) | 100.000 |
| Mainboard Support | ATX |
| Material | Aluminum - Copper |
| Noise Level (dBA) | 10 ~ 22 |
| Number Of Fans (Pre-Installed) | 2 |
| Operating Temperature (°C) From | -10 |
| Operating Temperature (°C) To | 70 |
| Options | Heatpipes |
| Other Models | ECLIPSE ADVANCED 900 series |
| Packaging Includes |
|
| Packaging Type | Retail sleeve |
| Rated Current (A) | 0.2 |
| Rated Power (W) | 2.16 |
| Rated Speed (RPM) +/- 10% | 400 ~ 1500 |
| Safety Approvals | CE |
| Specifications | V2.31 |
| Static Pressure mmH2O | 2.21 |
| Storage Temperature (°C) From | -40 |
| Storage Temperature (°C) To | 70 |
| Supports | Intel & AMD micro-processors |
| Thermal Design Power (W) | 150 |
| Thermal Interface Material | Stars-420 |
| Thermal Resistance | 0.06 |
| Thermal Type | AL+CU |
| Voltage DC (INPUT) | 12 |
| Warranty | 2 years |
Technical parameters
- Cooler type: Active
- Cooler utilization: CPU
- Velikost ventilátoru: 120x120
- Barva podsvícení: bez podsvícení
- Napájecí konektor: 4pin
