SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM

SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM
SPIRE CPU chladič Voyager PWM, 1156 / 1155 / 775 Intel Cooler, 800~2500RPM, 10.0~26.0dBA, 48,53CFM

Cooler type:Active; Cooler utilization:CPU

Your price: the product is no longer available

Price information

Your price excl. SNC:
-
  • Retail price:
    -
  • SNC:
    -
  • AO:
    -
  • Your price inc. sales tax:
    -
Code:
319204
P/N:
SP606S7-PWM
Warranty:
24 Month(s)
Manufacturer:
Spire
Representative in the EU:
EAN:
6943051206417

Particulars

http://www.spire-corp.com/cpu-coolers/voyager-pwm-sp606s7-pwm/

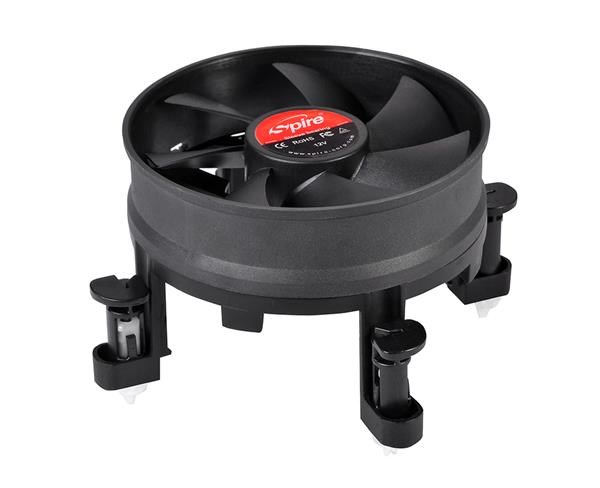

1156 / 1155 / 775 Cooler, aluminum Omni-Directional Fin heat-sink, 95x95x25mm fan design, Sleeve bearing , 800~2500RPM, 10.0~26.0dBA, 48,53CFM Max., 0.376C/W

Features:

  • Universal for all Intel sockets

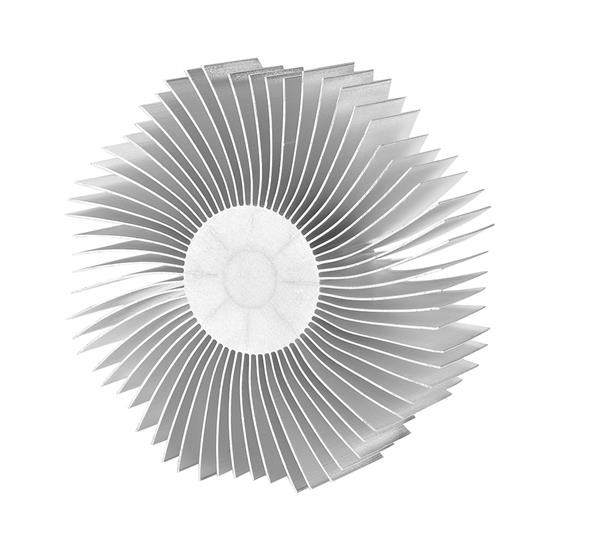

  • Aluminum Omni-directional heat-sink

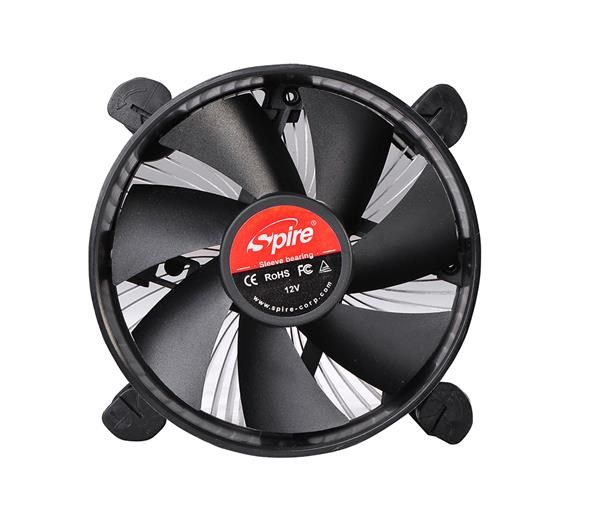

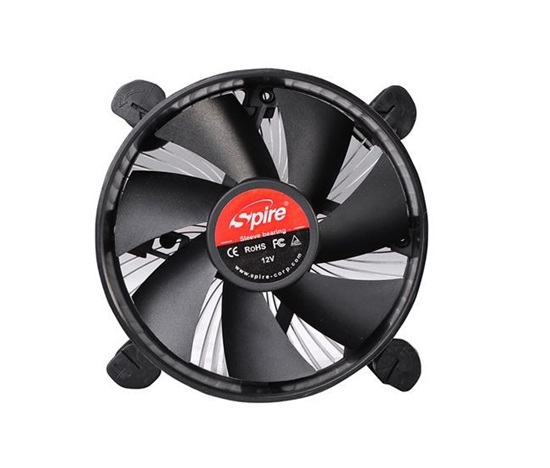

  • 95x25mm silent DC fan

  • PWM fan speed controlled fan

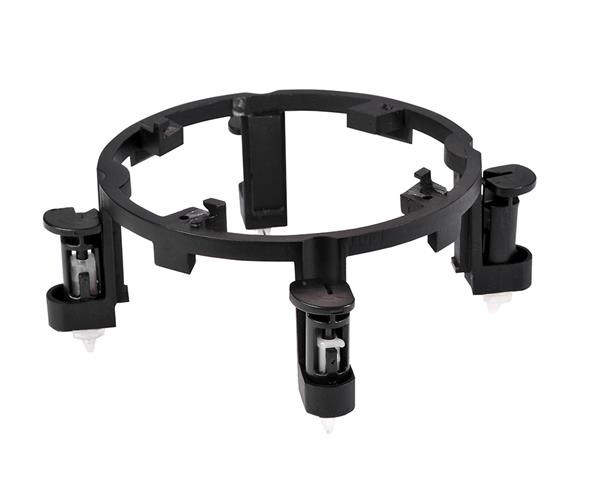

  • Tool-free, approved Push-pin retention

  • Retail packed for safe transport

  • S420 Thermal compound included

  • Supports 1150/1155/1156 & 775 sockets

Specifications:

Unit Weight

223g

Unit Dimension (cm)

9.3 x 9.3 x 3

Accessories

Voyager PWM

Air Flow (CFM)

48.53

Application
  • Intel Core i3

  • Intel Core i5

  • Intel LGA 1155

  • Intel LGA775 (Prescott)

  • AMD 1150

Bearing Type

Sleeve Bearing

Certification

CE/ROHS

Connectors

4 PIN PWM Molex 2510

Fan Size (cm)

9,5 x 9,5 x 2,5

Fan Type

12VDC

Fits Socket Types

Intel,AMD

Intel

775,115x

Life Expectancy (HRS)

30000

Mainboard Support

N/A

Material

Al

Noise Level (dBA)

10 ~ 26

Number Of Fans (Pre-Installed)

1

Operating Temperature (°C) From

-10

Operating Temperature (°C) To

70

Packaging Type

brown box

Rated Current (A)

0.20

Rated Power (W)

2.4

Rated Speed (RPM) +/- 10%

800 ~ 2500

Static Pressure mmH2O

2.32

Storage Temperature (°C) From

-40

Storage Temperature (°C) To

70

Thermal Design Power (W)

95

Thermal Interface Material

Stars-350

Thermal Resistance

0.376

Voltage DC (INPUT)

12 V
