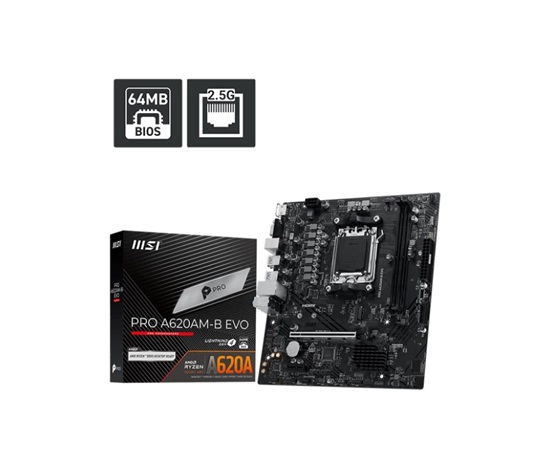

MSI MB Sc AM5 PRO A620AM-B EVO, AMD A620A, 2xDDR5, 1xHDMI, 1xVGA, mATX

New arrival
MSI MB Sc AM5 PRO A620AM-B EVO, AMD A620A, 2xDDR5, 1xHDMI, 1xVGA, mATX
MSI MB Sc AM5 PRO A620AM-B EVO, AMD A620A, 2xDDR5, 1xHDMI, 1xVGA, mATX
MSI MB Sc AM5 PRO A620AM-B EVO, AMD A620A, 2xDDR5, 1xHDMI, 1xVGA, mATX
MSI MB Sc AM5 PRO A620AM-B EVO, AMD A620A, 2xDDR5, 1xHDMI, 1xVGA, mATX
MSI MB Sc AM5 PRO A620AM-B EVO, AMD A620A, 2xDDR5, 1xHDMI, 1xVGA, mATX

Format:micro ATX; Chipset:AMD A620; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 10; PCI express 16x:1; COM port

Your price: 75,89 €

Add to basket:

pcs
Add
Availability: Usually 30 days

Price information

Your price excl. SNC:
75,83 €
  • Retail price:
    75,85 €
  • SNC:
    0,06 €
  • AO:
    0,00 €
  • Your price inc. sales tax:
    91,83 €
Code:
2648781
P/N:
PRO A620AM-B EVO
Warranty:
36 Month(s)
Manufacturer:
MSI
Representative in the EU:
EAN:
4711377397216
Compare

Particulars

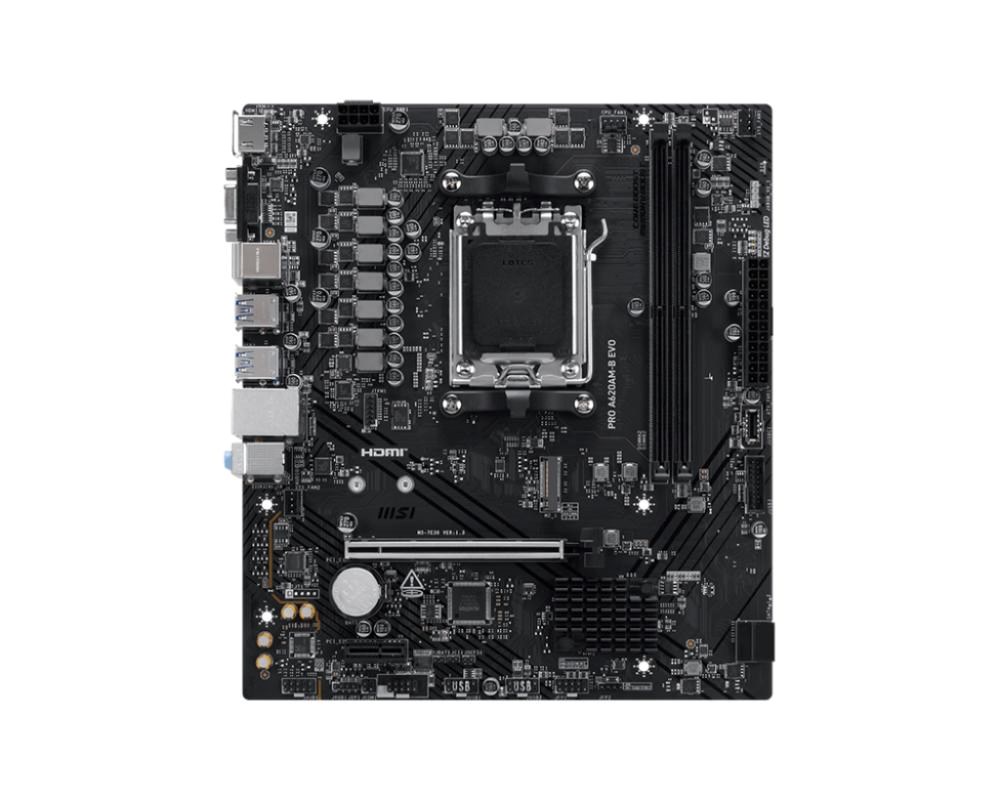

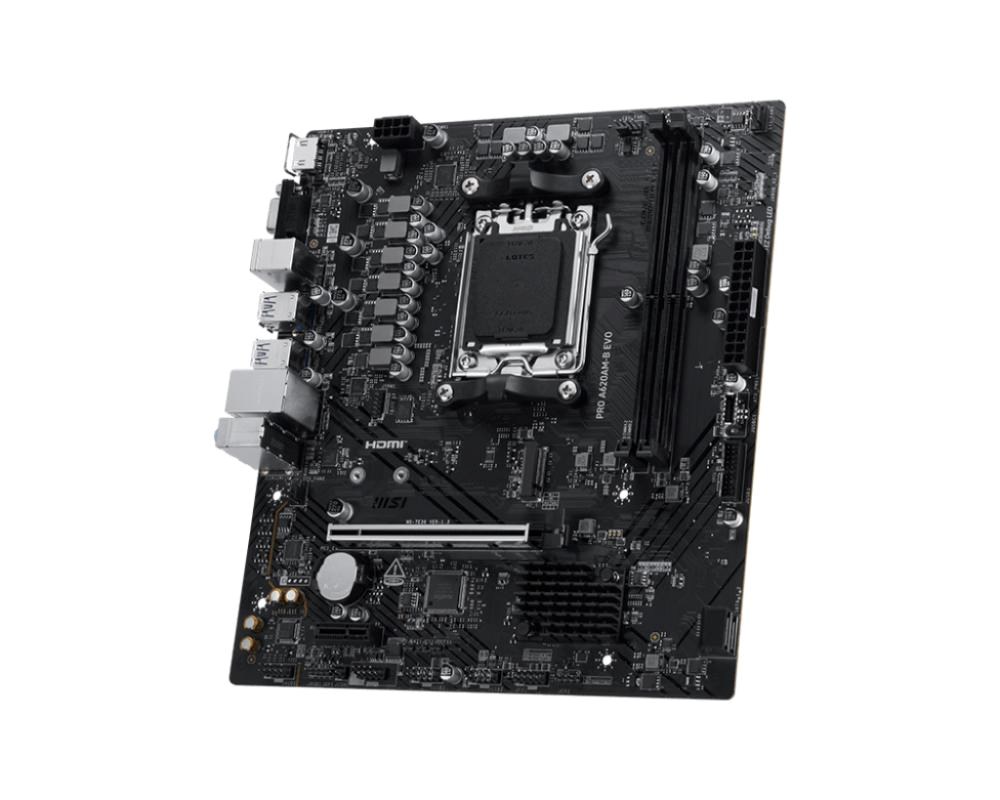

MSI PRO A620AM-B EVO

PRO A620AM-B EVO is designed with tons of flexible tools with DDR5 memory version. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.


Chipset

AMD A620A


CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5


Memory

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MT/s
• 1DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/


Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.


Expansion Slots

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)


Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio


Storage

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
2x SATA 6G
M2_1 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)


RAID

Supports RAID 0 and RAID 1 for SATA storage devices


USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)


LAN

Realtek® RTL8125 2.5G LAN


Internal I/O Connectors

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports


LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED


Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit


Form Factor

mATX
218mmx243.84mm
