MSI MB Sc AM4 PRO B550M-P, AMD B550, 4xDDR4, 1xVGA, 1xHDMI, 1xDP, mATX

New arrival
MSI MB Sc AM4 PRO B550M-P, AMD B550, 4xDDR4, 1xVGA, 1xHDMI, 1xDP, mATX
MSI MB Sc AM4 PRO B550M-P, AMD B550, 4xDDR4, 1xVGA, 1xHDMI, 1xDP, mATX
MSI MB Sc AM4 PRO B550M-P, AMD B550, 4xDDR4, 1xVGA, 1xHDMI, 1xDP, mATX
MSI MB Sc AM4 PRO B550M-P, AMD B550, 4xDDR4, 1xVGA, 1xHDMI, 1xDP, mATX
MSI MB Sc AM4 PRO B550M-P, AMD B550, 4xDDR4, 1xVGA, 1xHDMI, 1xDP, mATX
Your price: 78,98 €

Add to basket:

pcs
Add
Availability: 99 pcs on the way (10.08.2026)

Price information

Your price excl. SNC:
78,92 €
  • Retail price:
    78,94 €
  • SNC:
    0,06 €
  • AO:
    0,00 €
  • Your price inc. sales tax:
    95,57 €
Code:
2648817
P/N:
PRO B550M-P
Warranty:
36 Month(s)
Manufacturer:
MSI
Representative in the EU:
EAN:
Compare

Particulars

MSI PRO B550M-P

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.


Chipset

AMD B550


CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Socket AM4


Memory

4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4400+ MT/s
• 1DPC 2R Max speed up to 3733+ MT/s
• 2DPC 1R Max speed up to 3866+ MT/s
• 2DPC 2R Max speed up to 3466+ MT/s
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.


Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.


Expansion Slots

1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
*The supported specification depends on installed processor.


Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio


Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
*The supported specification depends on installed processor.


RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)


LAN

Realtek® RTL8111H 1Gbps LAN


Internal I/O Connectors

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports


LED FEATURE

4x EZ Debug LED

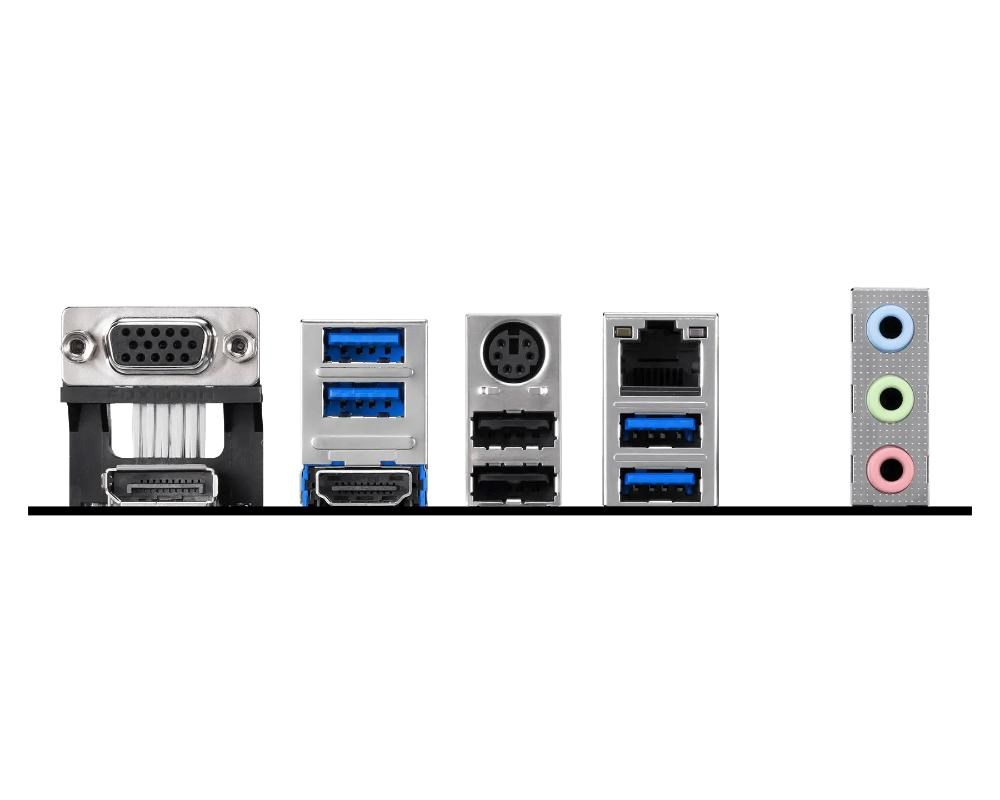

Back Panel I/O Ports

VGA
USB 5Gbps Type-A
Keyboard / Mouse
LAN Port
Audio connectors
DisplayPort
HDMI™
USB 2.0
USB 5Gbps Type-A


Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit


Form Factor

mATX
243.84mmx243.84mm
