BUNDLE HPE PL ML30g10 Plus E-2314 (4C/2.8G) 16G 2x2TB/7.2k SATA E208i 4LFF 2x1G + NBD333 (H75J8E)
BUNDLE HPE PL ML30g10 Plus E-2314 (4C/2.8G) 16G 2x2TB/7.2k SATA E208i 4LFF 2x1G + NBD333 (H75J8E)
Set
HPE Smart Array E208i-p SR Gen10 (8Int/noCache) RAID5 12G SAS PCIe ml30/110/350 dl160/180/380g10 804394-B21
Code: 767966, Part Number: 804394-B21, ID: 788470HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD
Code: 785724, Part Number: 861681-B21, ID: 804236HPE ML30 Gen10 Mini SAS Cable Kit (for P408i-p/E208i-p 1 for 4LFF 2 for 4SFF)
Code: 788765, Part Number: P06307-B21, ID: 1429649HPE PL ML30g10 Plus E-2314 (4C/2.8G) 16G 4LFF VROC (SATA/SWraid) 350Wn NBD311 OBSOLETE
Code: 1577367, Part Number: P44720-421, ID: 1613117HPE 3 Year Tech Care Basic ML30 Gen10 Plus Service
Code: 1577448, Part Number: H75J8E, ID: 1615704Particulars
HPE PL ML30g10 Plus E-2314 (4C/2.8G) 16G 2x2TB/7.2k SATA E208i 4LFF 2x1G + NBD333 (H75J8E)
Performance Models |
|
SKU Number |
P44720-421 (EMEA) |
Model Name |

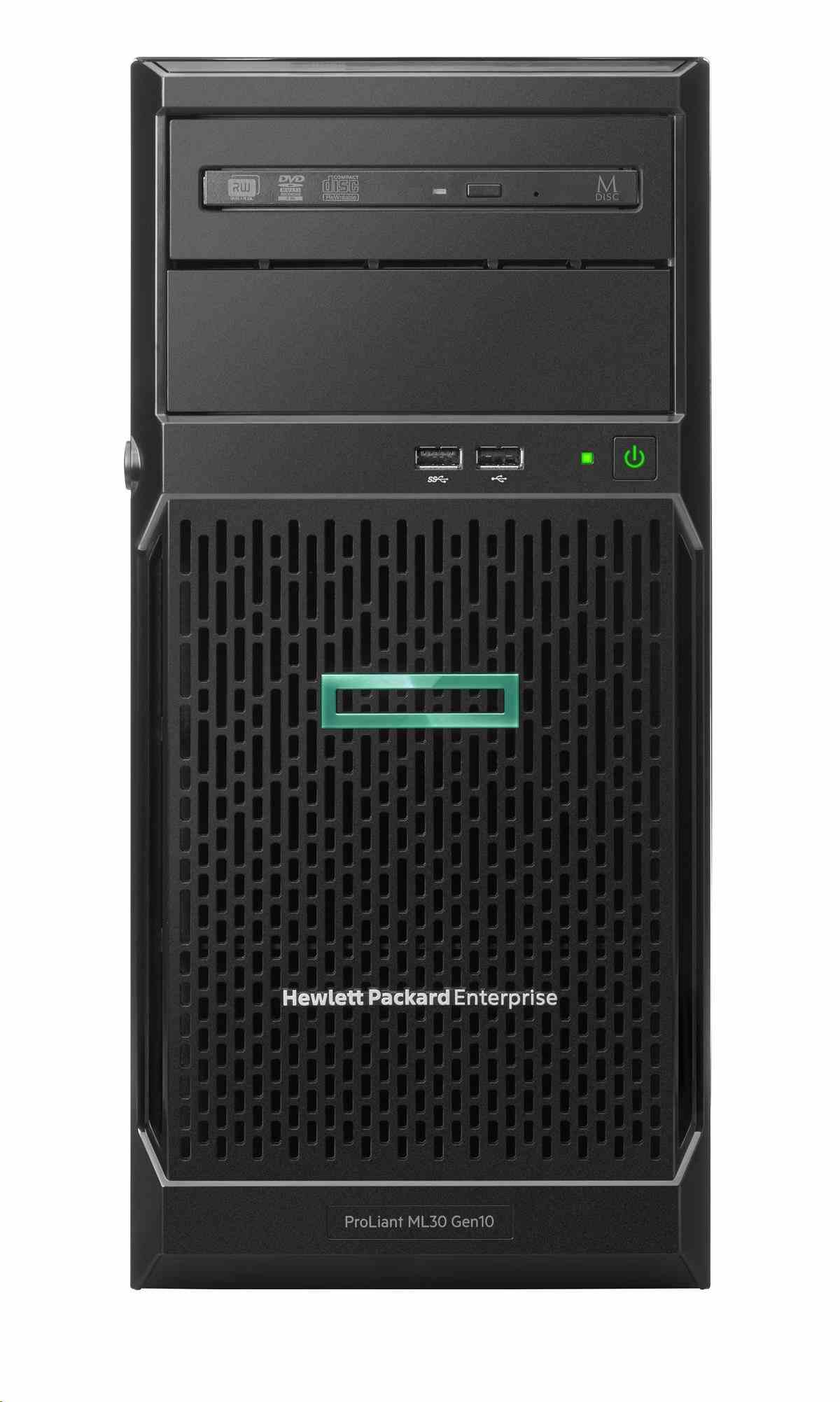

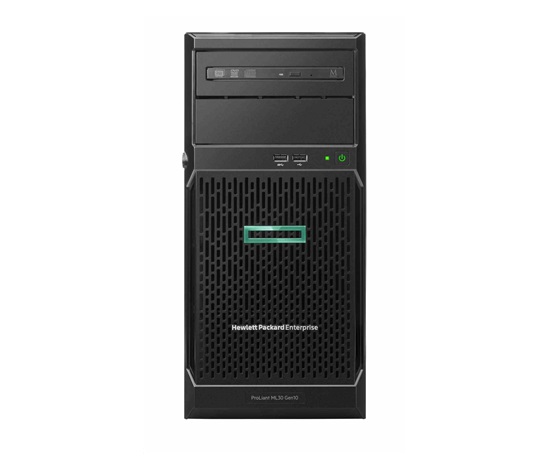

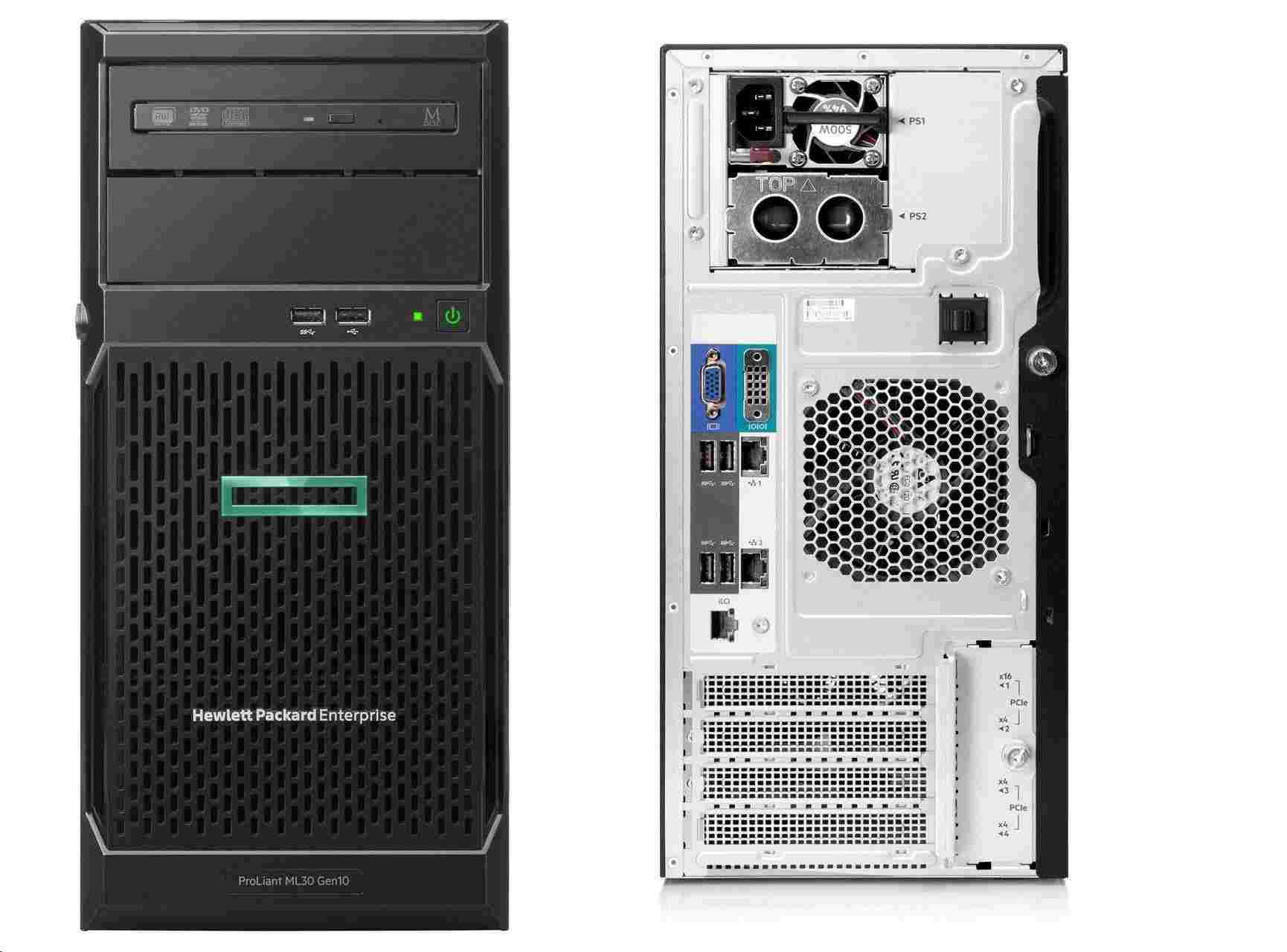

HPE ProLiant ML30 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 4LFF 350W PS Server |
Processor |
Intel® Xeon® E-2314 (4-Core, 2.8 GHz, 65W) |
Number of Processors |
One processor with a standard heatsink |
Memory |
16 GB UDIMM DDR4 3200 MT/s (1x 16 GB) |
Network Controller |
Embedded 1Gb 2-Port Ethernet Adapter |
Storage Controller |
Embedded Intel VROC SATA software RAID Notes: 4 SATA ports support drive bays, 2 SATA ports support optional HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and additional 1 SATA via onboard M.2 slot. |
Hard Drive |
None included |
Internal Storage |

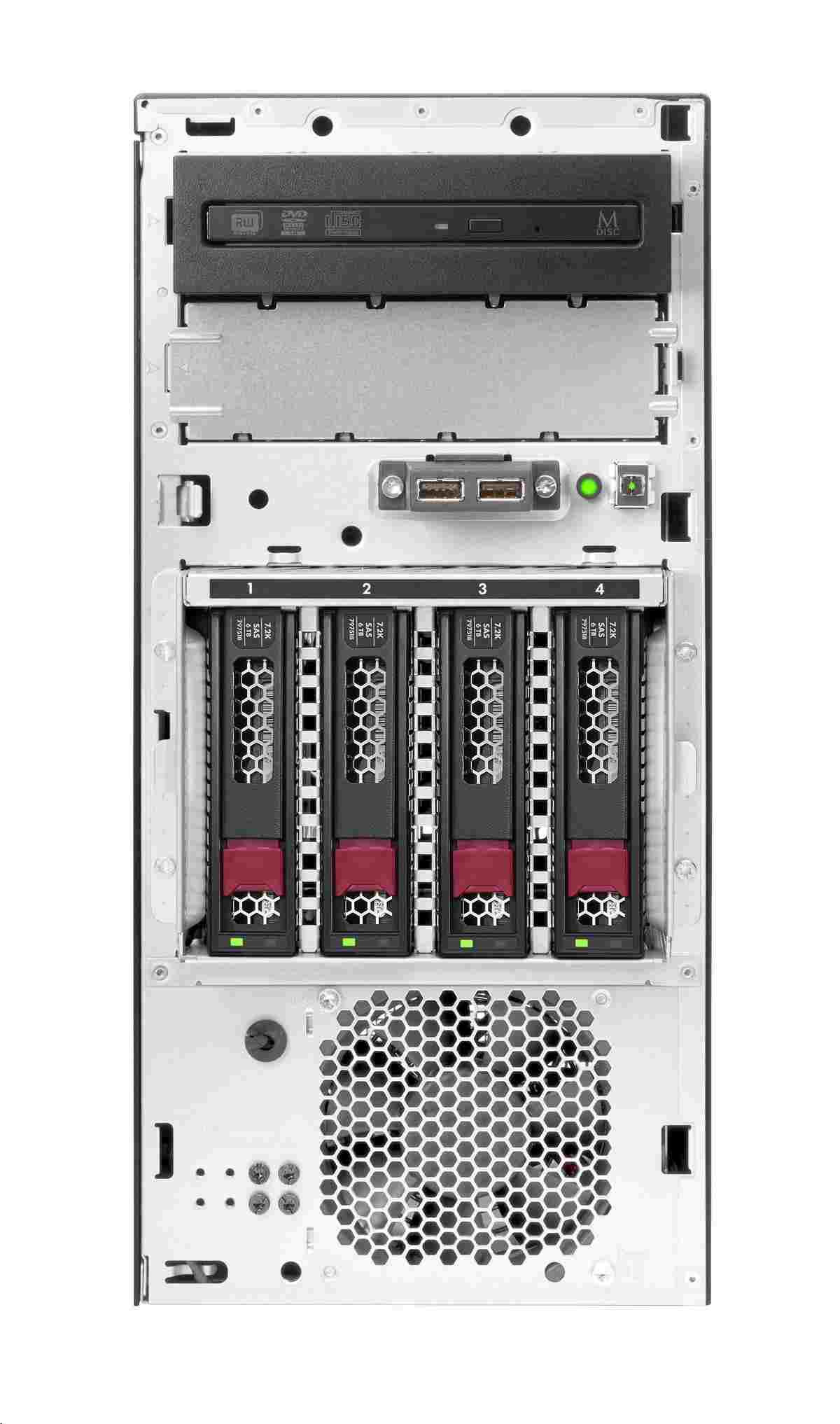

4 LFF HDD Bays (Hot Plug) 1 M.2 PCIe 3.0 x2/SATA slot |
Optical Drive Bay |
Optional Slimline ODD Bay Kit (P06309-B21) consumes 1 media bay |
Optical Drive |
None included |
PCI-Express Slots |
1 PCIe 4.0 slots, 3 PCIe 3.0 slots |
Power Supply |
1 350W ATX Power Supply |
Fans |
1 non-hot plug non-redundant system fan |
Management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) |
Security |
Embedded TPM |
Form Factor |
Tower (4U) |
Warranty |
3-year parts, 1-year labor, 1-year onsite support with next business day response. Notes: APAC, Japan, and PRC Server Warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
Technical parameters
- Servers: Tower
- Processor type: Intel 4 Core Xeon
- Model procesoru: Intel Xeon E-2314
- Výkon CPU dle PassMark: 7 951
- Number of PCIe slots: 4
- RAID: 1
- RAID: 10
- RAID: 5
- Backup ventilation: No
- Backup sources: No
