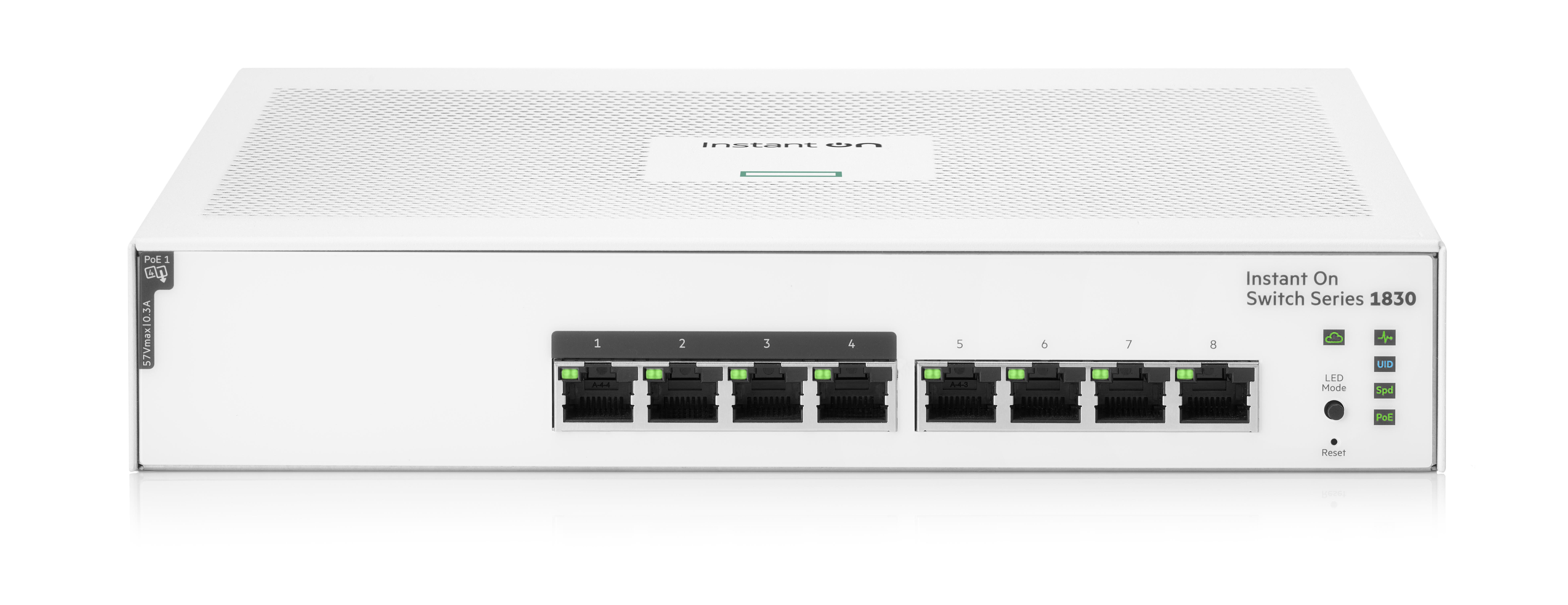

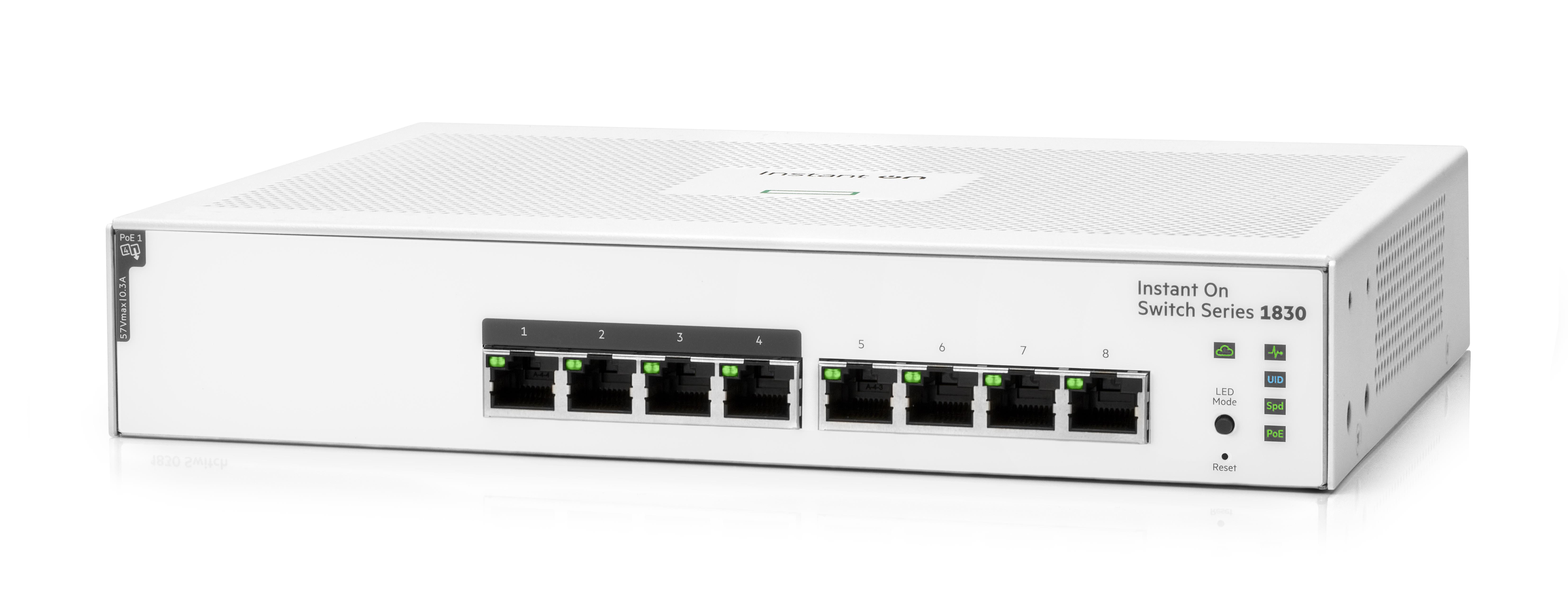

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 65W 1830 (JL811A)

Promotional deals

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 65W 1830 (JL811A)

Your price: the product is no longer available

Price information

Your price excl. SNC:

Retail price:
-
SNC:
-
AO:
-
Your price inc. sales tax:
-

Code:

1881007

P/N:

JL811A#ABB

Warranty:

99 LifeTime

Manufacturer:

Hewlett Packard Enterprise

Representative in the EU:

EAN:

190017524177

Search term:

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 65W (fanless) 1830 (JL811A)

Particulars

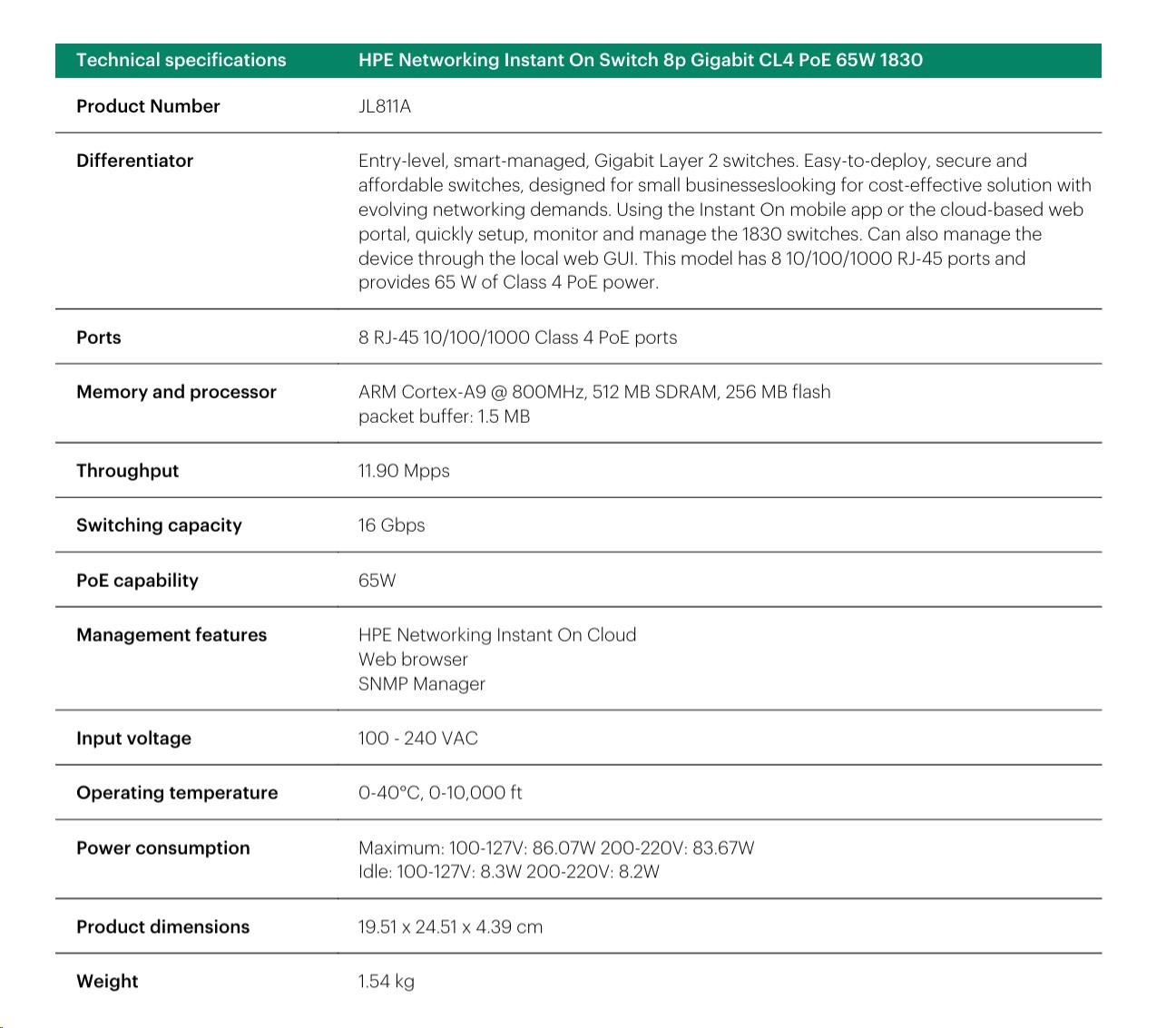

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 65W 1830 (JL811A)

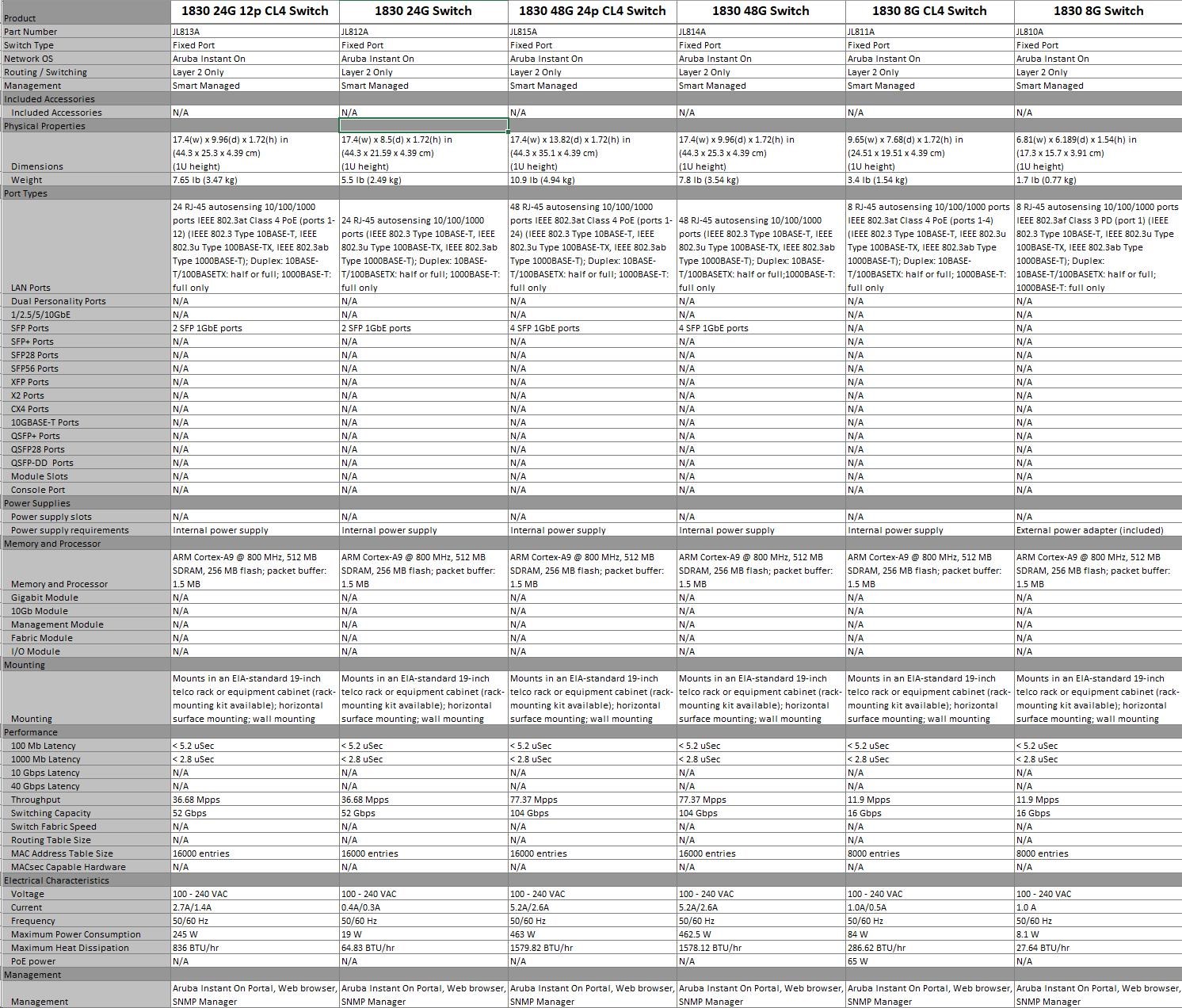

	Aruba Instant On 1830 8G Switch (JL810A)	Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)			Aruba Instant On 1830 24G 2SFP Switch (JL812A)		Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)	Aruba Instant On 1830 48G 4SFP Switch (JL814A)	Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
I/O ports and slots
	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports	48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports
Physical Characteristics
Dimensions	157.0(d) x 173.0(w) x 39.1(h) mm	195.1(d) x 245.1(w) x 43.9(h) mm		215.9(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm	351.0(d) x 443.0(w) x 43.9(h) mm
Weight	1.70 lb (0.77 kg)	3.40 lb (1.54 kg)		5.50 lb (2.49 kg)		7.65 lb (3.47 kg)		7.80 lb (3.54 kg)	10.90 lb (4.94 kg)
Processor and Memory
	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Performance

100 Mb latency

< 5.2 uSec

1000 Mb latency

< 2.8 uSec

10000 Mb latency

n/a

Throughput (Mpps)

11.90 Mpps

38.68 Mpps

77.37 Mpps

Capacity

16 Gbps

52 Gbps

104 Gbps

MAC address table size (# of entries)

8,000 entries

16,000 entries

Reliability MTBF (years)

188.2

105.9

203.6

96.6

114.4

83.5

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/ storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/ storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustics¹

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.4 Bel LpAm (Bystander) = 19 dB

LWAd = 4.0 Bel LpAm (Bystander) = 25 dB

Notes: ¹Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

100% traffic

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.4 Bel LpAm (Bystander) = 19 dB

LWAd = 3.5 Bel LpAm (Bystander) = 20 dB

100% traffic / 0% PoE

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.5 Bel LpAm (Bystander) = 20 dB

100% traffic / 50% PoE

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 4.0 Bel LpAm (Bystander) = 25 dB

100% traffic / 100% PoE

Fanless

LWAd = 5.1 Bel LpAm (Bystander) = 35 dB

LWAd = 5.7 Bel LpAm (Bystander) = 41 dB

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200- 240VAC

Current

12V -- 1.0A

1.0A/0.5A

0.4A/0.3A

2.7A/1.4A

0.9A/0.6A

5.2A/2.6A

Maximum power rating

100-127V: 8.09W 200-220V: 8.05W

100-127V: 86.07W 200-220V: 83.67W

100-127V: 19.1W 200-220V: 19W

100-127V: 244.6W 200-220V: 237.2W

100-127V: 40.2W 200-220V: 40W

100-127V: 462.5W 200-220V: 452.5W

Idle power

100-127V: 5.8W 200-220V: 5.9W

100-127V: 8.3W 200-220V: 8.2W

100-127V: 7.6W 200-220V: 7.8W

100-127V: 14.5W 200-220V: 13.4W

100-127V: 17.7W 200-220V: 17.7W

100-127V: 25.8W 200-220V: 25.4W

PoE power

13W max Class 3 PD

65 W Class 4 PoE

195 W Class 4 PoE

370 W Class 4 PoE

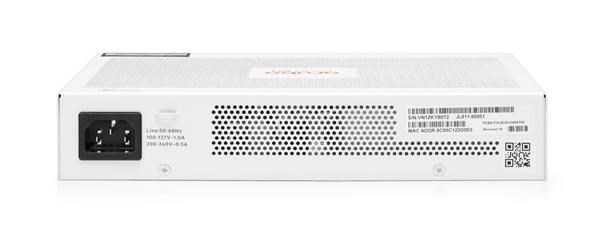

Power supply

External power adapter (included)

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

L 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Immunity

Generic

EN 55035, CISPR 35, KN35

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting

Mounting positions and supported racking

Supports table-top mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using base surface mounting holes

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Suports under-table mounting using the brackets provided

Aruba Instant On 1830 8G Switch (JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch (JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)

Aruba Instant On 1830 48G 4SFP Switch (JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)

Transceivers

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)

Technical parameters

Solution: Desktop
Solution: Rack mounted 19"
Funkce: QoS (Quality of service)
Funkce: VLAN (virtual local area network)
Funkce: DHCP snooping
Funkce: Stohovatelnost
Funkce: Web management/Smart switch
Funkce: VPN
Funkce: L2
Technology: Gigabit Ethernet 1000Mbps
Podporované standardy PoE: 802.3at
Počet PoE Out portů: 4
Počet PoE Out portů: 4
Počet SFP portů: 0
Počet SFP portů: 0
Počet SFP+ portů: 0
Počet SFP+ portů: 0
Počet portů Combo: 0
Počet portů Combo: 0
Ventilátor: Ne
Maximální počet portů: 8
Přenosová rychlost LAN (Mb/s): 12.2
Maximum number of ports: 8
Management: SNMP/RMON
