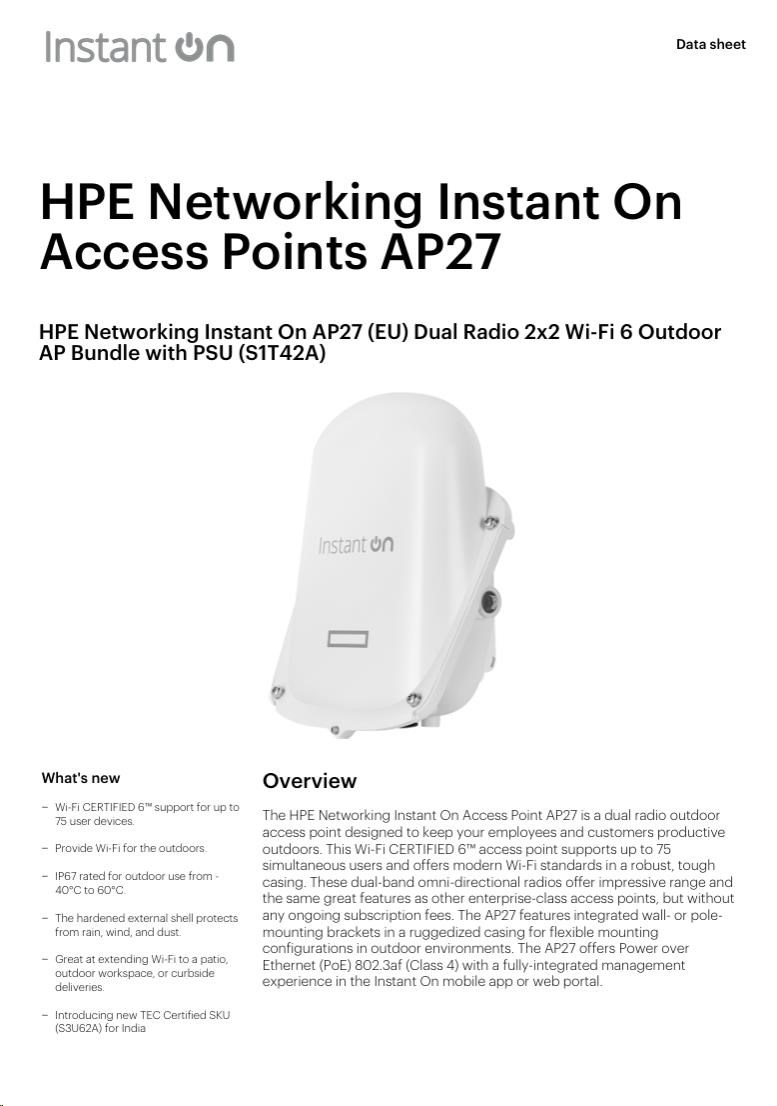

HPE Networking Instant On AP27 (EU) Wi-Fi 6 Outdoor Access Point Bundle with PSU (S1T42A)

HPE Networking Instant On AP27 (EU) Wi-Fi 6 Outdoor Access Point Bundle with PSU (S1T42A)

The HPE Networking Instant On AP27 (S1T42A) is a rugged, enterprise-grade Wi-Fi 6 (802.11ax) outdoor access point designed to deliver reliable, high-speed wireless connectivity in demanding environments. Built for outdoor deployments, it supports up to 75 simultaneous users and provides secure, high-performance networking for patios, warehouses, outdoor workspaces, hospitality venues, and public areas. :contentReference[oaicite:0]{index=0}

This EU bundle includes the access point, power supply unit, mounting kit, and installation accessories, ensuring quick and easy deployment with no additional hardware required.

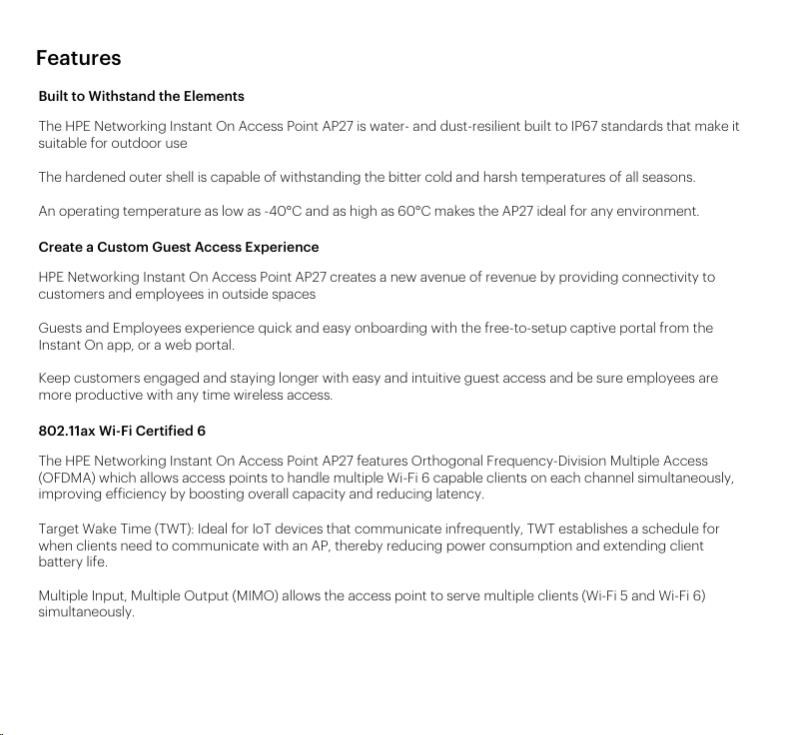

Key Features

• Wi-Fi 6 (802.11ax) dual-band outdoor access point
• Supports up to 75 simultaneous users
• IP67-rated weatherproof enclosure (dustproof & waterproof)
• Operating temperature range: -40°C to +60°C
• Dual-radio 2x2 MIMO (2.4 GHz + 5 GHz)
• High transmit power up to +25 dBm
• Integrated wall and pole mounting options
• Cloud-managed via Instant On mobile app or web portal
• No licensing or subscription fees

Wireless Specifications

• Standards: IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
• MIMO: 2x2:2 spatial streams
• Frequency bands:
  • 2.4 GHz
  • 5 GHz
• Maximum data rate:
  • 5 GHz: up to 1.2 Gbps
  • 2.4 GHz: up to 574 Mbps
• Channel bandwidth: 20 / 40 / 80 MHz
• Technologies:
  • OFDMA for improved efficiency and reduced latency
  • MU-MIMO for simultaneous multi-device communication
  • Target Wake Time (TWT) for IoT efficiency
  • Beamforming for extended range and signal quality

Performance and Coverage

• Designed for outdoor environments and extended coverage
• Supports up to 75 connected devices
• High transmit power ensures strong signal penetration
• Ideal for patios, outdoor offices, logistics areas, and public Wi-Fi

Networking and Connectivity

• 1× Gigabit Ethernet (1 GbE Base-T uplink)
• LED status indicators
• Reset button
• Kensington security slot

Power and Consumption

• Power input: PoE 802.3at (Class 4) or 12V DC (included PSU in bundle)
• Maximum power consumption: 14.6W (PoE)

Antennas and RF Performance

• Antennas: Dual omni-directional 2x2 MIMO
• Antenna gain:
  • 2.4 GHz: 3.2 dBi
  • 5 GHz: 5.4 dBi
• Maximum transmit power:
  • 2.4 GHz: up to +25 dBm
  • 5 GHz: up to +25 dBm

  Durability and Environmental Specifications

  • Ingress protection: IP67 (dustproof and water-resistant)
  • Operating temperature: -40°C to +65°C
  • Outdoor hardened enclosure resistant to rain, wind, dust, and extreme weather :contentReference[oaicite:1]{index=1}

  Security Features

  • WPA3 and WPA2 support
  • Enhanced Open (OWE)
  • Trusted Platform Module (TPM)
  • Secure guest network with captive portal
  • Access control and traffic filtering

  Management

  • Cloud-based management (Instant On platform)
  • Mobile app (iOS/Android) and web interface
  • Zero-touch deployment
  • Client monitoring and analytics
  • Application visibility and control

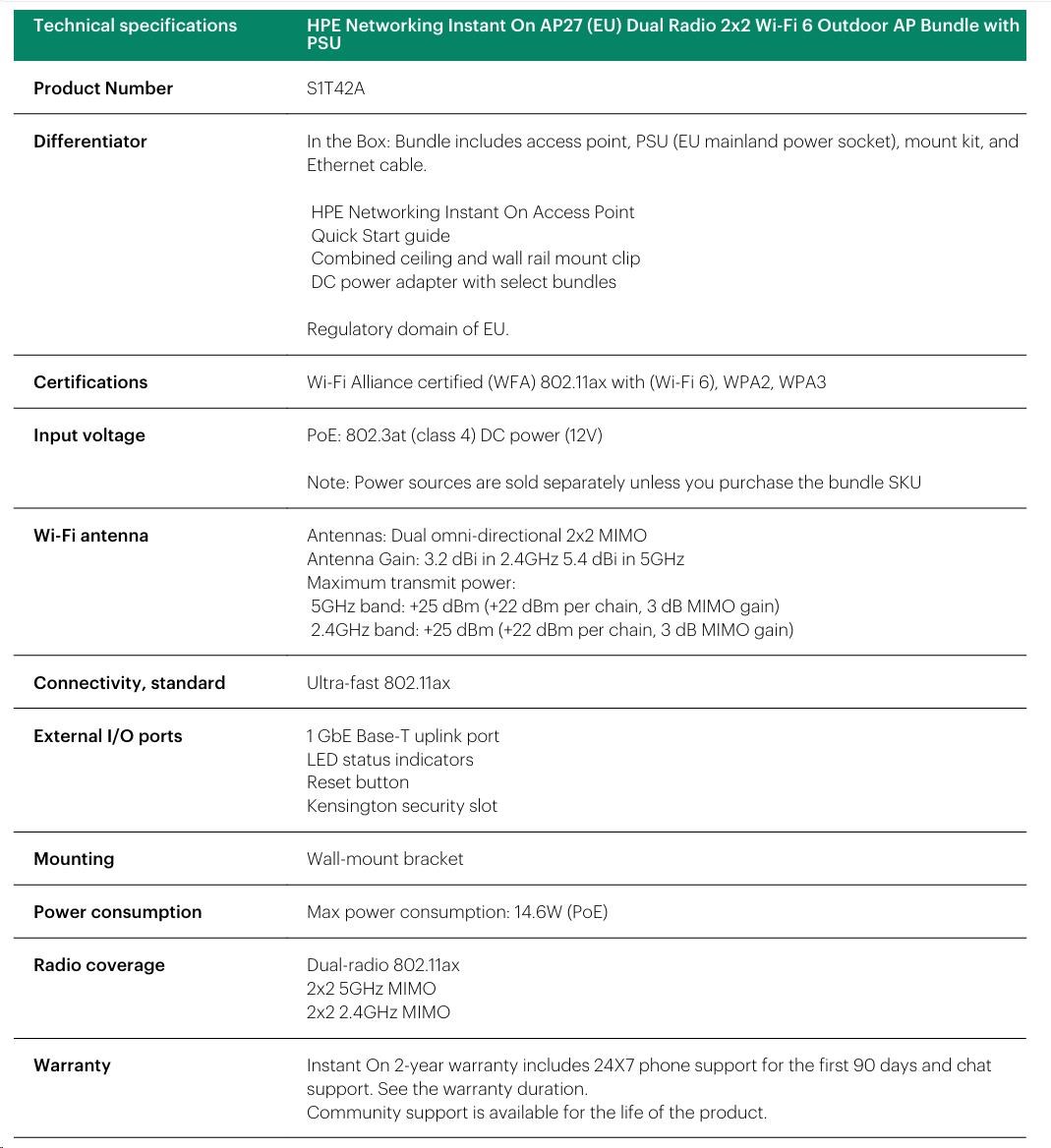

  Technical Specifications

  Parameter	Value
  Product	HPE Networking Instant On AP27 (EU)
  Part Number	S1T42A
  Type	Outdoor Access Point (Bundle)
  Wi-Fi Standard	Wi-Fi 6 (802.11ax)
  Radios	Dual-band 2x2 MIMO
  Max Data Rate	1.2 Gbps (5 GHz) + 574 Mbps (2.4 GHz)
  Max Clients	Up to 75 devices
  Ethernet	1× 1GbE RJ-45 uplink
  Power	PoE 802.3at or DC 12V (included PSU)
  Power Consumption	Max 14.6W
  Antenna Type	Integrated omni-directional
  Antenna Gain	3.2 dBi (2.4 GHz), 5.4 dBi (5 GHz)
  Transmit Power	Up to +25 dBm
  Dimensions	180 × 232 × 120 mm
  Weight	1170 g
  Mounting	Wall / pole mount bracket
  Operating Temperature	-40°C to +65°C
  Warranty	2-year limited warranty

Package Contents

• HPE Networking Instant On AP27 Access Point
• EU Power Supply Unit (PSU)
• Mounting kit (wall/pole)
• Quick Start Guide

Additional Information

• EU regulatory domain
• Designed for outdoor enterprise deployments
• Smart Mesh support for wireless expansion
• No recurring subscription or licensing fees

The HPE Instant On AP27 (S1T42A) delivers reliable outdoor Wi-Fi 6 connectivity with enterprise-grade durability, making it the perfect choice for businesses that need secure, high-performance wireless coverage beyond indoor spaces.
