HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW)
HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW)
Your price:
the product is no longer available
Price information
Your price excl. SNC:
-
-
Retail price:
-
-
SNC:
-
-
AO:
-
-
Your price inc. sales tax:
-
Particulars

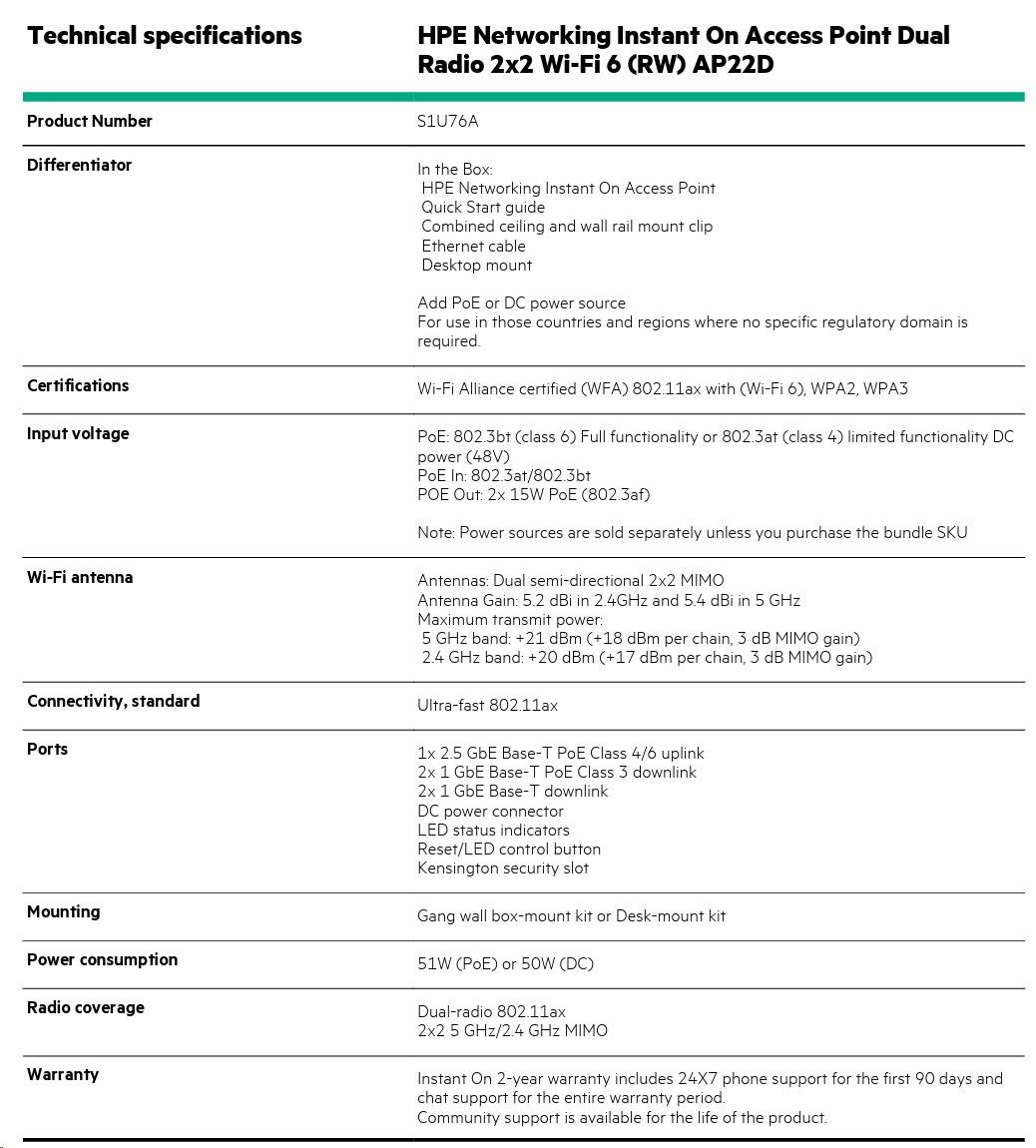

HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW) S1U76ATechnical Specifications
Product Information
- Product Name: HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
- Product Number: S1U76A
- Differentiator: For use in countries/regions where no specific regulatory domain is required.
In the Box
- HPE Networking Instant On Access Point
- Quick Start Guide
- Combined ceiling and wall rail mount clip
- Ethernet cable
- Desktop mount
- Add PoE or DC power source (sold separately unless bundle SKU is purchased)
Certifications
- Wi-Fi Alliance certified (WFA)
- 802.11ax (Wi-Fi 6)
- WPA2, WPA3
Power and Input Voltage
- PoE Input: 802.3bt (Class 6) full functionality or 802.3at (Class 4) limited functionality
- DC Power: 48V
- PoE In: 802.3at / 802.3bt
- PoE Out: 2x 15W PoE (802.3af)
Wi-Fi Antenna
- Type: Dual semi-directional 2x2 MIMO
- Antenna Gain: 5.2 dBi (2.4GHz), 5.4 dBi (5GHz)
- Max Transmit Power:
- 5GHz: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
- 2.4GHz: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
Connectivity Standards
Ultra-fast 802.11ax
Ports
- 1x 2.5 GbE Base-T PoE (Class 4/6 uplink)
- 2x 1 GbE Base-T PoE (Class 3 downlink)
- 2x 1 GbE Base-T downlink
- DC power connector
- LED status indicators
- Reset/LED control button
- Kensington security slot
Mounting Options
- Gang wall box-mount kit
- Desk-mount kit
Power Consumption
- 51W (PoE)
- 50W (DC)
Radio Coverage
Dual-radio 802.11ax 2x2 5GHz / 2.4GHz MIMO
Warranty
Instant On 2-year warranty includes:
- 24x7 phone support for the first 90 days
- Chat support for the entire warranty period
- Community support for the life of the product
Technical parameters
- WiFi active element type: Access Points, Bridge
- Communication fields: 2,4 + 5 (Dual Band)
- Supported standards: 802.11ax
- Zabezpečení: WPA3
- Zabezpečení: WPA2
- Typ antény: Integrovaná
- External antenna connection: No
- USB: yes
- Slot na SIM kartu: Ano
- Použití: Vnitřní
- Typy PoE: PoE - In + PoE - Out
- Počet portů LAN: 0
- Počet portů LAN: 0
- Počet WAN portů: 1
- Počet WAN portů: 1
- Další vlastnosti: PoE (Power over ethernet)
- Další vlastnosti: Podpora 5G
- Další vlastnosti: QoS (Quality of service)
- Další vlastnosti: Podpora Wi-Fi Mesh
- Další vlastnosti: Rodičovská kontrola
- Další vlastnosti: Firewall
- Další vlastnosti: Síť pro hosty
- Další vlastnosti: Print server
- Další vlastnosti: Management
- Další vlastnosti: FTP server
- Další vlastnosti: VLAN
