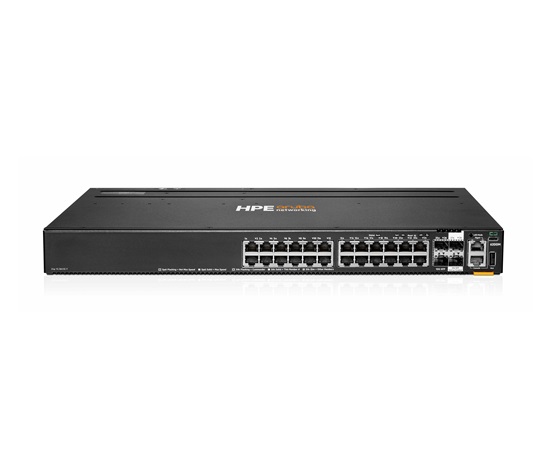

HPE Aruba Networking CX 6200M 24G 4SFP+ Switch R8Q67AR RENEW

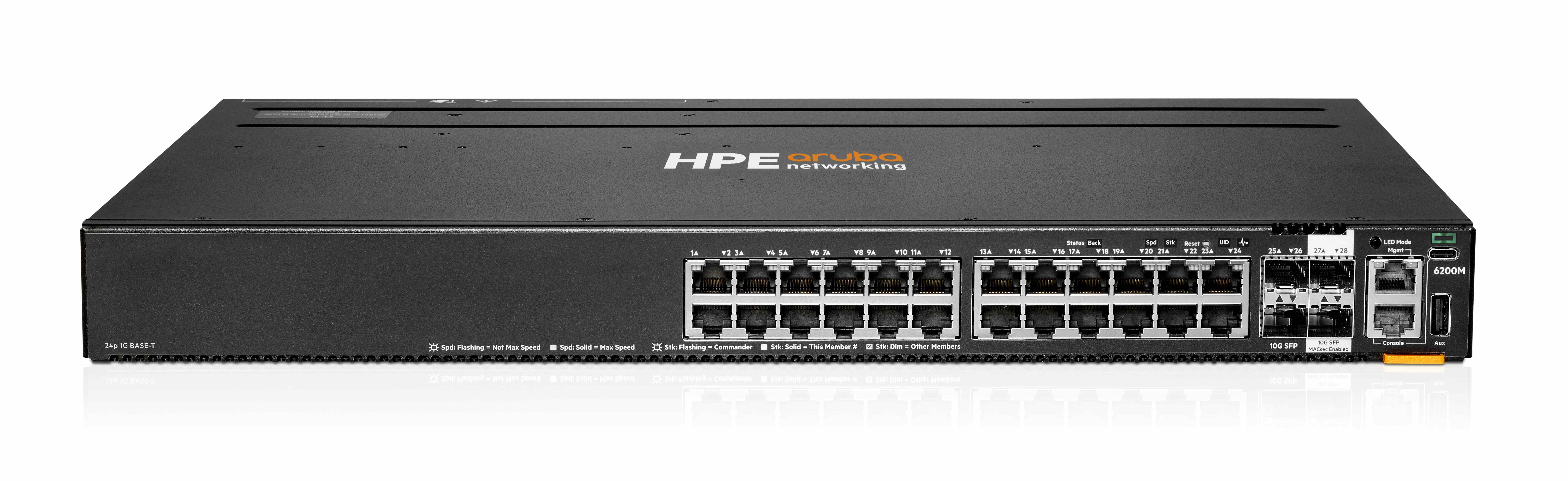

HPE Aruba Networking 6200M 24G 4SFP+ Switch (R8Q67A)

Specifications

Description

24x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port

Power supplies

2 field-replaceable, hotswappable power supply slots
1 minimum power supply required (ordered separately)
Supports JL085A PSU

Fans

• Switch has two fan tray slots; Switch includes one fan tray. Min 1 fan tray required. Optional second fan tray ordered separately.
• Fan trays are field replaceable and hotswappable.
• Each fan tray contains two fans.

Physical characteristics

Dimensions

(H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")

Configuration Weight

5.59 kg (12.32 lbs)

Additional Specifications

CPU

Quad Core ARM Cortex^TM A72 @ 1.8GHz

Memory and Flash

8 GB DDR4 16 GB eMMC

Packet Buffer

6 MB Packet Buffer Memory

Performance

Model Switching Capacity

128 Gbps

Model Throughput Capacity

Up to 95.2 Mpps

Average Latency (LIFO-64-bytes packets)

1Gbps: 3.6µSec 10Gbps: 2.9µSec

Stack Size

8 members (with other 24/48p 6200F and 6200M switches only; No stacking support with 12p 6200F switches)

Max. Stacking Distance

Up to 10 kms with long range transceivers

Stacking Bandwidth

40 Gbps

Switched Virtual Interfaces (dual stack)

256

IPv4 Host Table (ARP)

8,000

IPv6 Host Table (ND)

8,000

IPv4 Unicast Routes

2,000

IPv6 Unicast Routes

2,000

MAC Table Capacity

32,768

IGMP Groups

1,000

MLD Groups

1,000

IPv4/IPv6/MAC ACL Entries (ingress)

1,000/1,000/1,000

IPv4/IPv6/MAC ACL Entries (egress)

512/256/512

Environment

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1000 ft from 5,000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods of time.

Operating Relative Humidity

15% to 95% @ 104°F (40°C) non-condensing

Non-Operating

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Non-Operating Storage Relative Humidity

15% to 90% @ 149°F (65°C) non-condensing

Max Operating Altitude

10,000 feet (3.048 km) Max

Max Non-Operating Altitude

15,000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd = 4.5 Bel Sound Pressure, LpAm (Bystander) = 29.1 dB

Primary Airflow

Front and side to back

Electrical Characteristics

Frequency

50Hz/60Hz

AC Voltage

JL085A PSU: 100V-240V

Current

JL085A PSU: 3A/1.2A

80plus.org Certification

JL085A PSU: 80plus Gold

Maximum heat dissipation BTU/hr and kj/hr info needed

164 BTU/hr

173 kj/hr

Power Consumption (230 VAC)

With JL085A PSU: Idle: 56W 100% Traffic Rate: 75W

Safety

Europe:

EN 62368-1:2014+A11:2017

EN 62368-1:2020+A11:2020

UK: BS EN 62368-1:2014 + A11:2017 2nd Ed BS EN 62368-1:2020 + A11:2020 3rd Ed
US:

UL 62368-1, 3rd Ed.,
Canada:

CAN/CSA C22.2 No. 62368-1:19, 3rd Ed.
Worldwide:

IEC 62368-1:2014 2nd Ed.

IEC 62368-1: 2018 3rd Ed.
Taiwan:

CNS-15598-1:2020
China:

GB 4943.1:2022

Emissions

Europe:

EN 55032:2015 +A11:2020, Class A

EN 61000-3-2:2019

EN 61000-3-3:2013
US:

FCC 47 CFR part 15B: Class A
Canada:

ICES-003 Issue 7: 2020, Class A
Worldwide:

VCCI-CISPR 32, Class A

CISPR 32: 2016, Class A

AS/NZS CISPR 32: 2015,

Class A GB/T 9254.1-2021, Class A CNS 15936:

2020, Class A

KS C 9832

Lasers

EN 60825-1:2014 / IEC 60825-1:2014 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Immunity

Generic

CISPR 35: 2016

EN

EN 55035:2017 +A11:2020

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2, EN 61000-3-2

Flicker

IEC 61000-3-3, EN 61000-3-3

RoHS

EN 63000:2018 / IEC 63000:2018

Mounting and Enclosure

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
