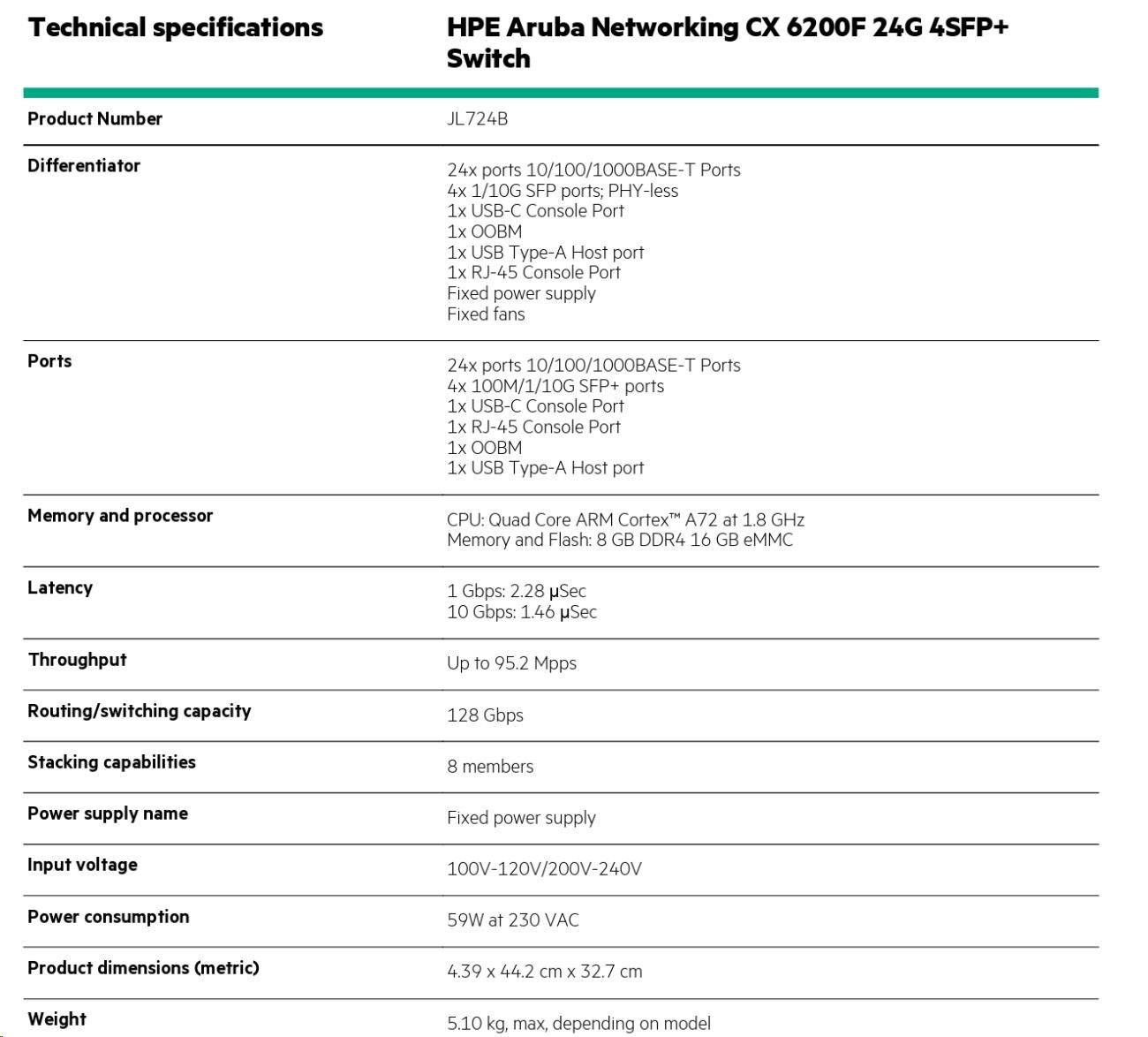

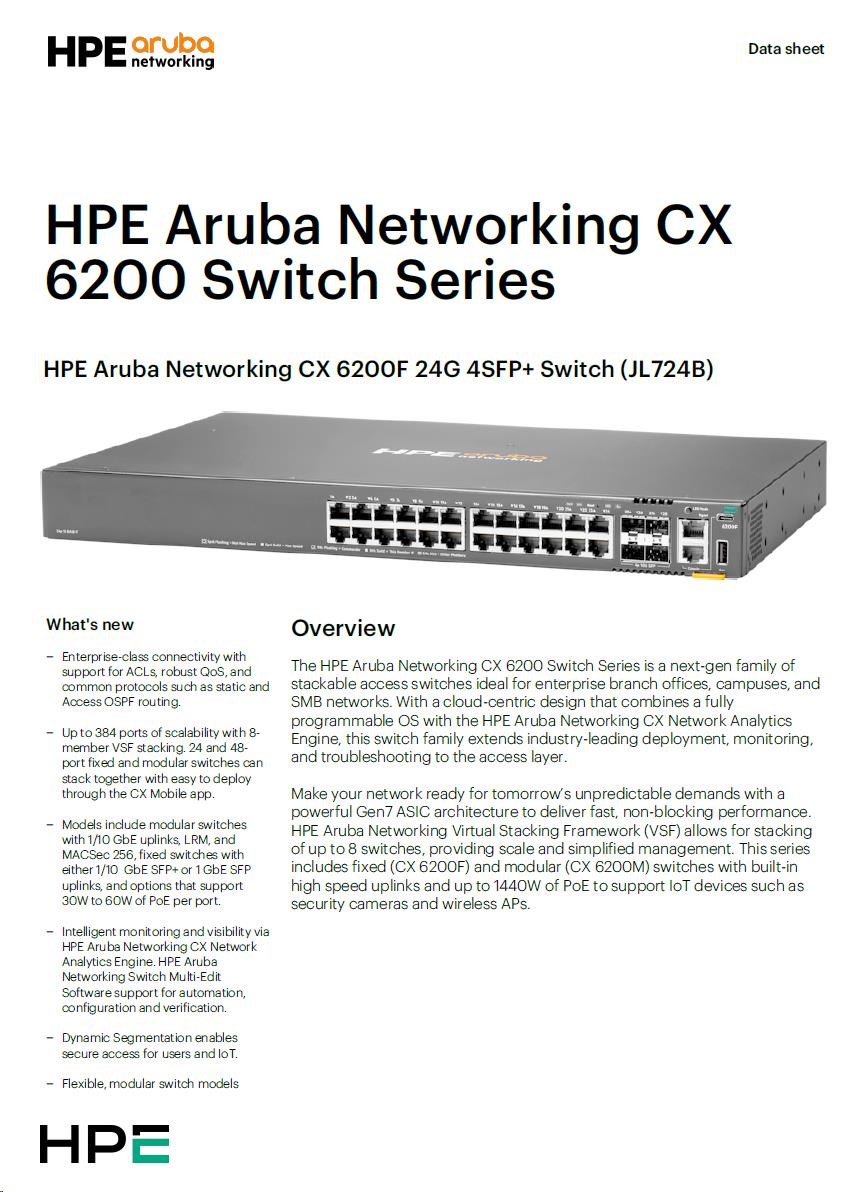

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch (JL724A)
|
|
Description
|
24x ports 10/100/1000BASE-T Ports
4x 1/10G SFP ports
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth Adapter to be used with HPE Aruba Networking CX Mobile App
|
|
Power supplies
|
Fixed power supply
|
|
Fans
|
Fixed fans
|
|
Physical characteristics
|
Dimensions
|
(H) 4.39 cm x
(W) 44.2 cm x
(D) 32.7 cm
(1.73"" x 17.4"" x 12.9"")
|
|
Weight
|
4.36 kg (9.61 lbs)
|
|
CPU
|
Quad Core ARM CortexTM A72 @ 1.8 GHz
|
|
Memory and Flash
|
8 GB DDR4
16 GB eMMC
|
|
Packet buffer
|
8 MB packet buffer memory
|
|
Performance
|
Model switching capacity
|
128 Gbps
|
|
Model throughput capacity
|
Up to 95.2 Mpps
|
|
Average latency (LIFO-64-bytes packets)
|
1 Gbps: 2.28 µSec
10 Gbps: 1.46 µSec
|
|
Stack size
|
8 members
|
|
Max. stacking distance
|
Up to 10 kms with long range transceivers
|
|
Stacking Bandwidth
|
40 Gbps
|
|
Switched virtual interfaces (dual stack)
|
128
|
|
IPv4 host table (ARP)
|
8,192
|
|
IPv6 host table (ND)
|
8,192
|
|
IPv4 unicast routes
|
2,048
|
|
IPv6 unicast routes
|
1,024
|
|
MAC table capacity
|
32,768
|
|
IGMP groups
|
1,024
|
|
MLD groups
|
1,024
|
|
IPv4/IPv6/MAC ACL entries (ingress)
|
5,120/1280/5,120
|
|
IPv4/IPv6/MAC ACL entries (egress)
|
2,048/512/2,048
|
|
Environment
|
Operating temperature
|
32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1,000 ft from 5,000 to 10,000 ft
|
|
Operating relative humidity
|
15% to 95% @ 104°F (40°C) non-condensing
|
|
Non-operating temperature
|
-40°F to 158°F (-40°C to 70°C) up to 15,000 ft
|
|
Non-operating relative humidity
|
15% to 90% @ 149°F (65°C) non-condensing
|
|
Max operating altitude
|
Up to 10,000ft (3.048 Km)
|
|
Max non-operating altitude
|
15,000 feet (4.6 km) max
|
|
Acoustics
|
Sound power, LWAd = 4.9 Bel
Sound pressure, LpAm (bystander) = 32.5 dB
|
|
Primary airflow
|
Front and side-to-back
|
|
Electrical characteristics
|
Frequency
|
50Hz/60Hz
|
|
AC voltage
|
100-120V/200-240V
|
|
Current
|
2.5A/1.4A
|
|
80plus.org certification
|
80 PLUS Silver
|
|
Power consumption (230 VAC)
|
Hibernation (0 rpm fan): 7W
Idle: 49W
100% traffic rate: 59W
|
|
Safety
|
Europe:
EN 62368-1:2014 +A11:2017
EN 62368-1:2020 +A11:2020
USA:
UL 62368-1, 3rd Ed.,
Canada:
CAN/CSA C22.2 No. 62368-1:19, 3rd Ed.
Worldwide:
IEC 62368-1:2014 2nd Ed.
IEC 62368-1: 2018 3rd Ed.
Taiwan: CNS-15598-1:2020
China:
GB 4943.1:2022
|
|
Emissions
|
Europe:
EN 55032:2015 /A11:2020, Class A
EN 61000-3-2:2019
EN 61000-3-3:2013
US:
FCC 47 CFR part 15B: 2021, Class A
Canada:
ICES-003 Issue 7: 2020, Class A
Worldwide:
VCCI-CISPR 32, Class A
CISPR 32: 2016, Class A
AS/NZS CISPR 32: 2015, Class A
CNS 15936: 2020, Class A
KS C 9832
|
|
Lasers
|
EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories - Optical Transceivers only)
|
|
Immunity
|
Generic
|
CISPR 35: 2016
|
|
EN
|
EN 55035:2017 / A11:2020
|
|
ESD
|
EN 61000-4-2
|
|
Radiated
|
EN 61000-4-3
|
|
EFT/Burst
|
EN 61000-4-4
|
|
Surge
|
EN 61000-4-5
|
|
Conducted
|
EN 61000-4-6
|
|
Power frequency magnetic field
|
IEC 61000-4-8
|
|
Voltage dips and interruptions
|
EN 61000-4-11
|
|
Harmonics
|
EN 61000-3-2, IEC 61000-3-2
|
|
Flicker
|
EN 61000-3-3, IEC 61000-3-3
|
|
RoHS
|
EN 63000:2018 / IEC 63000:2018
|
|
Mounting and Enclosure
|
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet.
Horizontal surface mounting only.
2-post rack kit included.
|
