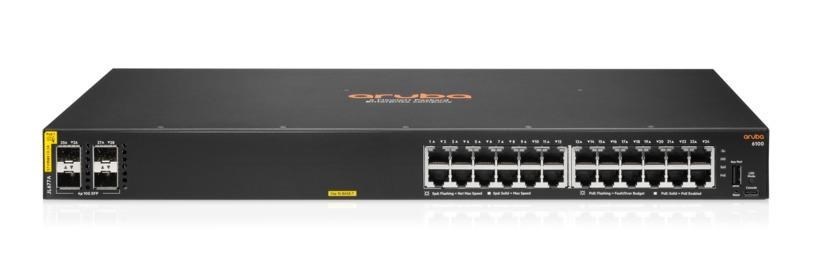

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch

Promotional deals
HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch
HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch

Your price: 1 295,62 €

Add to basket:

pcs
Add
Availability: 5 psc in stock

Price information

Your price excl. SNC:
1 295,55 €
  • Retail price:
    1 295,58 €
  • SNC:
    0,07 €
  • AO:
    0,00 €
  • Your price inc. sales tax:
    1 567,70 €
Code:
3150432
P/N:
JL677A#ABB
Warranty:
24 LifeTime
Manufacturer:
Hewlett Packard Enterprise
Representative in the EU:
EAN:
190017348483
Compare

Particulars

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch

Řada přepínačů Aruba CX 6100 je moderní rodina přístupových přepínačů základní úrovně ideální pro pobočky, střední podniky a sítě SMB. Přepínače Aruba CX 6100, navržené pro spolehlivý, jednoduchý a bezpečný přístup, poskytují pohodlné řešení kabelového přístupu pro podnikové sítě podporující IoT, mobilní a cloudové aplikace.

Technické parametry

  • 24x 10/100/1000Base-T porty
  • 4x 1/10G SFP porty
  • 1x USB-C Console Port, 1x USB Type-A Host port
  • Interní (pevný) napájecí zdroj (500 W), pevné ventilátory
  • Maximální výkon: 32,7 W bez PoE, 455 W s PoE
  • Vstupní napětí: 100-127 VAC / 200-240 VAC
  • Přepínací kapacita: 128 Gb/s
  • Propustnost: 95,2 Mpps
  • Procesor: Dual Core ARM Cortex A9 @ 1016 Mhz
  • Paměť a Flash: 4 GB DDR3, 16 GB eMMC
  • Možnost PoE: Až 370W Class 4 PoE
  • Rozměry: 4,39 x 44,2 x 26,82 cm
  • Hmotnost: 4,2 kg

Specifications

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)

Description

24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port

Power supplies

Fixed power supply (500W) Up to 370W of Class 4 PoE Power

Fans

Fixed fans

Physical characteristics

Dimensions

(H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73" x 17.4" x 10.56")

Configuration Weight

4.19kg (9.24 lbs)

Additional Specifications

CPU

Dual Core ARM Cortex A9 @ 1016 Mhz

Memory and Flash

4 GB DDR3 16 GB eMMC

Packet Buffer

12.38MB (4.5MB Ingress/7.875MB Egress)

Performance

Model Switching Capacity

128 Gbps

Model Throughput Capacity

95.2 Mpps

Average Latency (LIFO-64- bytes packets)

1 Gbps: 1.5 µSec , 10 Gbps: 1.8 µSec

Switched Virtual Interfaces (dual stack)

16

IPv4 Host Table (ARP)

1,024

IPv6 Host Table (ND)

512

IPv4 Unicast Routes

512

IPv6 Unicast Routes

512

MAC Table Capacity

8,192

IGMP Groups

512

MLD Groups

512

IPv4/IPv6/MAC ACL Entries (ingress)

256 / 128 / 256

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)

Environment

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Operating Relative Humidity

15% to 95% at 104°F (40°C) non-condensing

Non-Operating

-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)

Non-Operating Storage Relative Humidity

15% to 90% @ 149°F (65°C) non-condensing

Max Operating Altitude

10000 feet (3 km) Max

Max Non-Operating Altitude

15000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB

Primary Airflow

Side-to-side

Electrical Characteristics

Frequency

50 / 60 Hz

AC Voltage

100-127 VAC / 200-240 VAC

Current

4.6 A / 2.3 A

Power Consumption (230 VAC)

Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W

Safety

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/

CSA-C22.2 No. 60950-1;

EN 60825-1

UL 62368-1 Ed. 2; IEC

62368-1 Ed. 2; EN 62368-1:2014

Emissions

VCCI-CISPR 32, Class A; CNS

13438; ICES-003 Issue 6

Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016 /

CISPR-32, Class A

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)

Lasers

EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Immunity

Generic

CISPR 24 / CISPR 35

EN

EN 55024:2010 /

EN 55035:2017

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Mounting and Enclosure

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
