HPE Aruba Networking CX 6000 24G 4SFP Switch R8N88A

Promotional deals

Solution:Rack mounted 19"; Technology:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika, Gigabit optika; Maximum number of ports:24; Management:SNMP/RMON

Your price: 400,70 €

Add to basket:

Quantity

pcs

Add

Availability: 3 psc in stock

Price information

Your price excl. SNC:

400,63 €

Retail price:
400,66 €
SNC:
0,07 €
AO:
0,00 €
Your price inc. sales tax:
484,85 €

Code:

3150428

P/N:

R8N88A#ABB

Warranty:

24 LifeTime

Manufacturer:

Hewlett Packard Enterprise

Representative in the EU:

EAN:

190017541624

Particulars

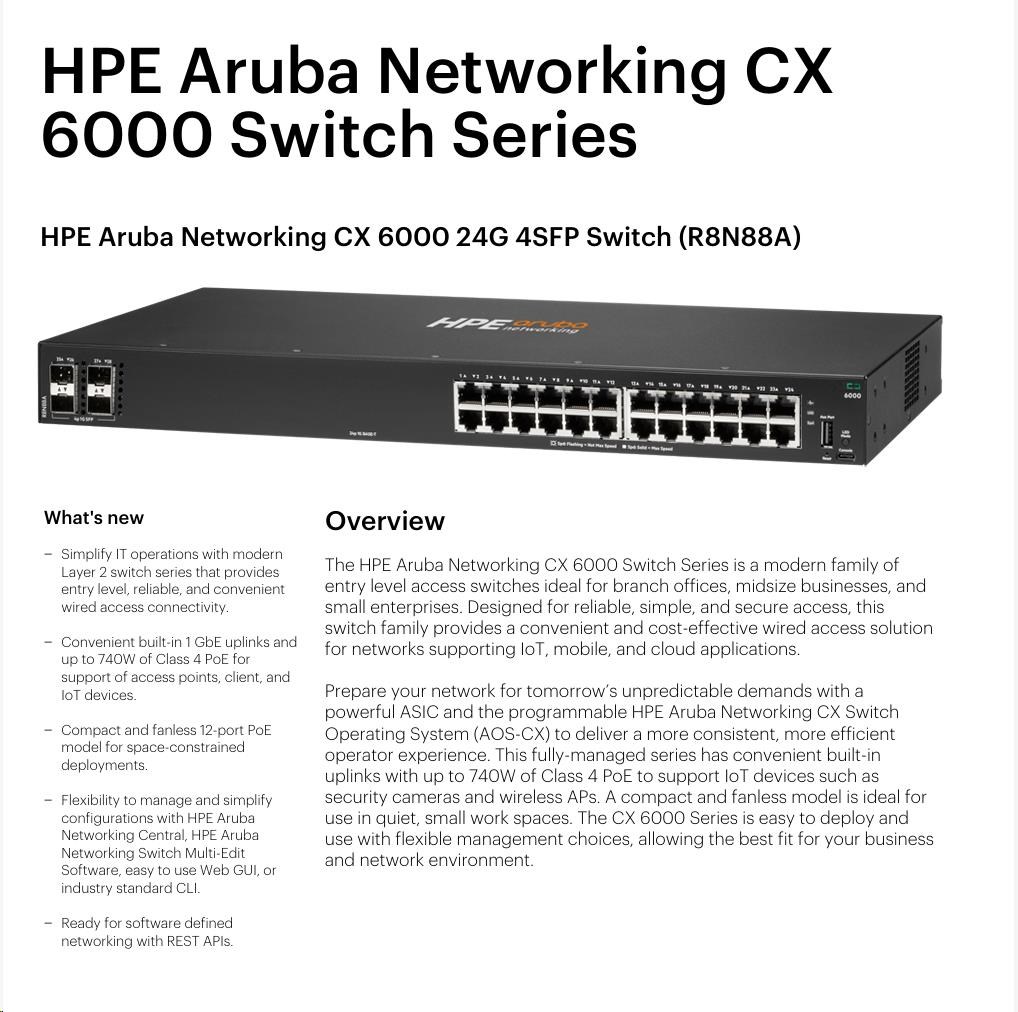

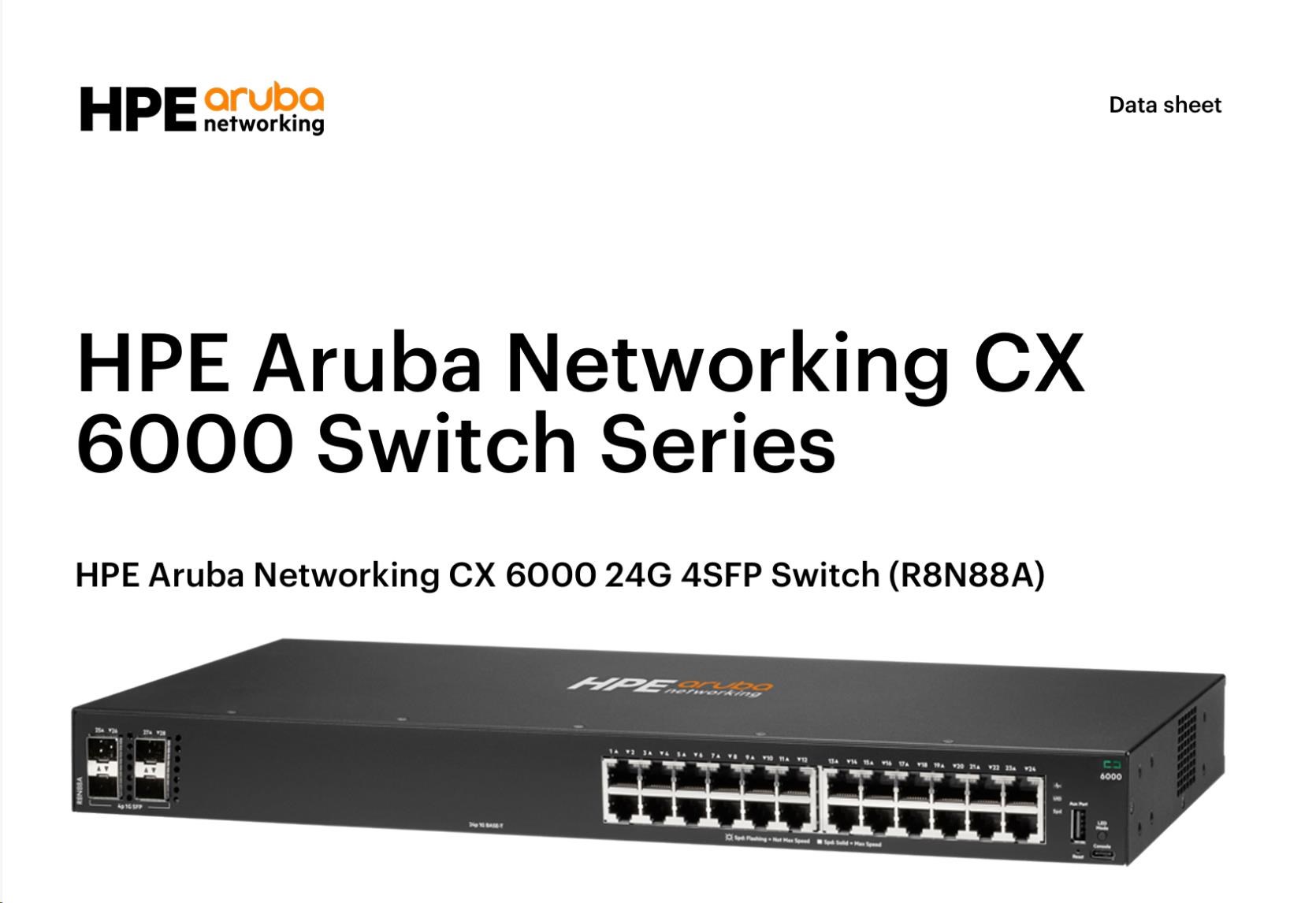

HPE Aruba Networking CX 6000 24G 4SFP Switch

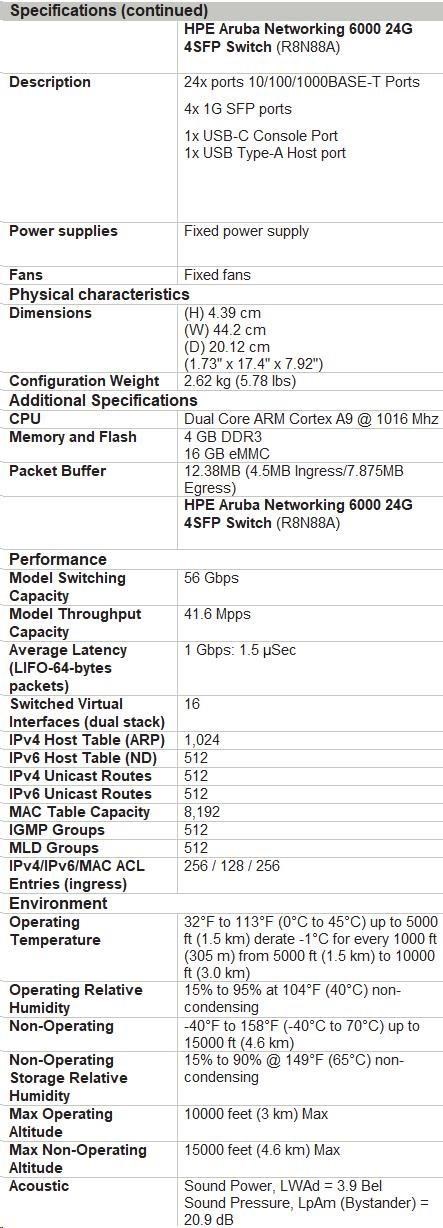

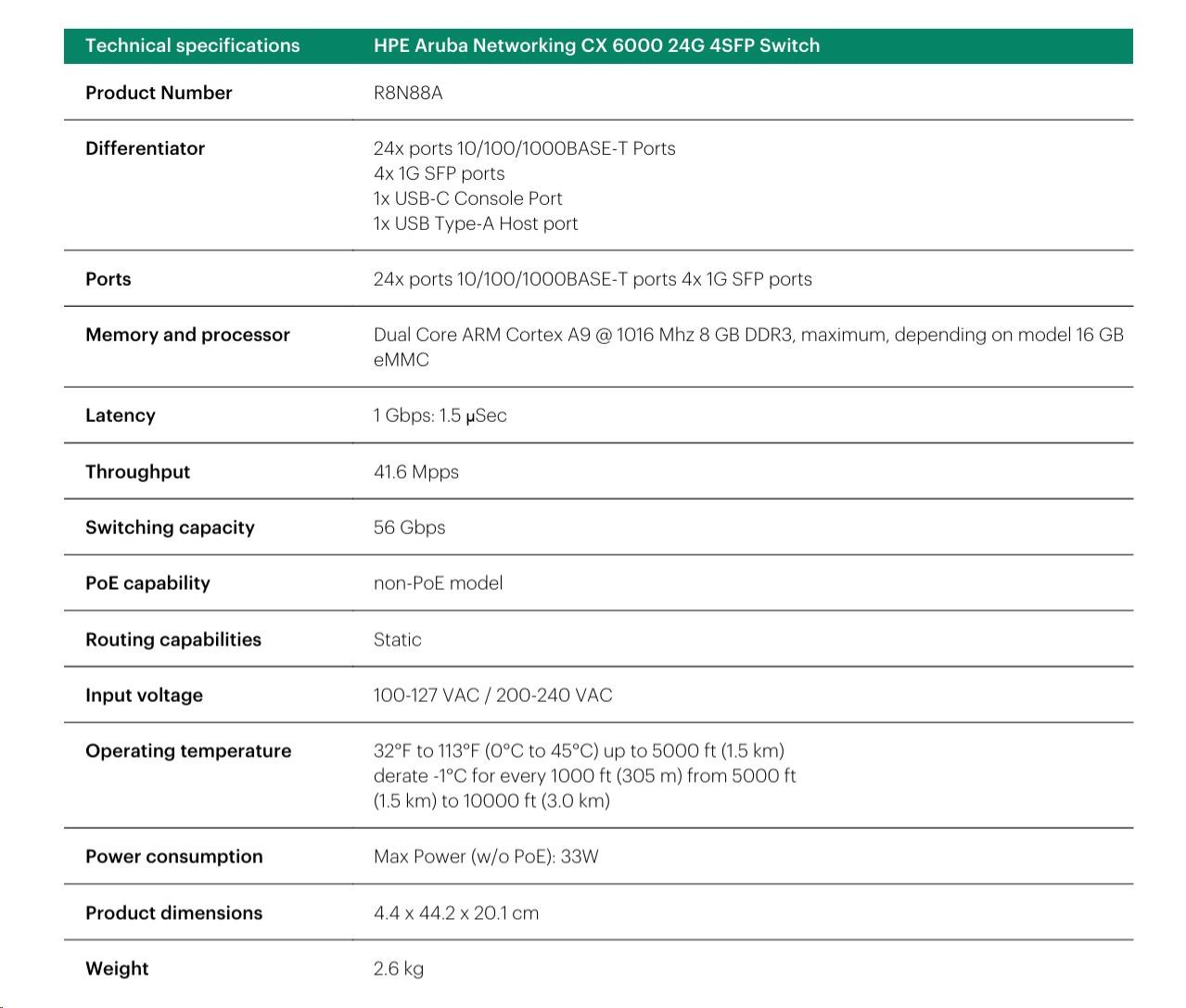

Model	Aruba 6000 24G 4SFP Switch (R8N88A)
Description	24x ports 10/100/1000BASE-T Ports 4x 1G SFP ports 1x USB-C Console Port 1x USB Type-A Host port
Power supplies	Fixed power supply
Fans	Fixed fans
Dimensions	(H) 4.39 cm (W) 44.2 cm (D) 20.12 cm (1.73" x 17.4" x 7.92")
Configuration Weight	2.62 kg (5.78 lbs)
CPU	Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash	4 GB DDR3 16 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)
Model Switching Capacity	56 Gbps
Model Throughput Capacity	41.6 Mpps
Average Latency (LIFO-64-bytes packets)	1 Gbps: 1.5 µSec
Switched Virtual Interfaces (dual stack)	16
IPv4 Host Table (ARP)	1,024
IPv6 Host Table (ND)	512
IPv4 Unicast Routes	512
IPv6 Unicast Routes	512
MAC Table Capacity	8,192
IGMP Groups	512
MLD Groups	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256
Environment
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity	15% to 95% at 104°F (40°C) non-condensing
Non-Operating	-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity	15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude	10000 feet (3 km) Max
Max Non-Operating Altitude	15000 feet (4.6 km) Max

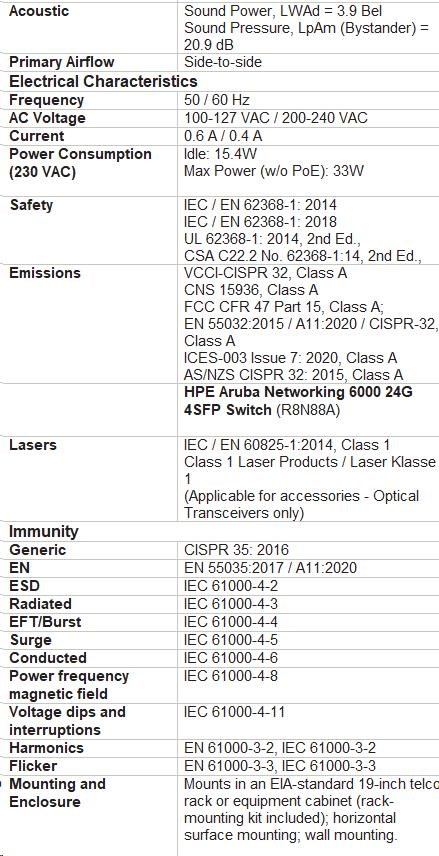

Acoustic	Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 20.9 dB
Primary Airflow	Side-to-side
	Aruba 6000 24G 4SFP Switch (R8N88A)
Electrical Characteristics
Frequency	50 / 60 Hz
AC Voltage	100-127 VAC / 200-240 VAC
Current	0.6 A / 0.4 A
Power Consumption (230 VAC)	Idle: 15.4W Max Power (w/o PoE): 33W
Safety	UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014
Emissions	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Lasers	EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic	CISPR 24 / CISPR 35
EN	EN 55024:2010 / EN 55035:2017
ESD	IEC 61000-4-2
Radiated	IEC 61000-4-3
EFT/Burst	IEC 61000-4-4
Surge	IEC 61000-4-5
Conducted	IEC 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	IEC 61000-4-11
Harmonics	EN 61000-3-2, IEC 61000-3-2
Flicker	EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

Technical parameters

Solution: Rack mounted 19"
Funkce: QoS (Quality of service)
Funkce: VLAN (virtual local area network)
Funkce: L3
Funkce: L2
Technology: Gigabit Ethernet 1000Mbps
Technology: Gigabit ethernet + Gigabit optika
Technology: Gigabit optika
Počet SFP portů: 4
Maximální počet portů: 24
Latence 1Gb/s (mikrosek.): 1,5
Propustnost (Mp/s): 41,6
Přepínací kapacita (Gb/s): 56
Přenosová rychlost LAN (Mb/s): 1000
Management: SNMP/RMON
Maximum number of ports: 24
