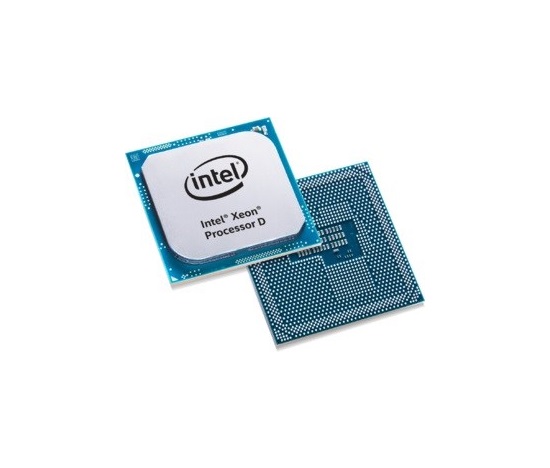

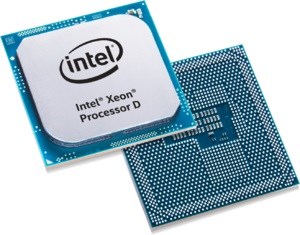

CPU INTEL XEON D-1571, FCBGA1667, 1.30 GHz, 24MB L3, 16/32, tray (bez chladiče)

Processor type:Server; Processor type:Intel Xeon; CPU equipment:Bez chladiče

Your price: 1 393,02 €

Quantity

pcs

Add

Availability: Usually 21 days

Your price excl. SNC:

1 392,96 €

Code:

521804

P/N:

GG8067402570310

Warranty:

12 Month(s)

Manufacturer:

Intel

Representative in the EU:

EAN:

Particulars

Code Name	Broadwell
Essentials
Vertical Segment	Server
Processor Number	D-1571
Lithography	14 nm
Performance
# of Cores	16
# of Threads	32
Processor Base Frequency	1.30 GHz
Max Turbo Frequency	2.10 GHz
Cache	24 MB
TDP	45 W
Supplemental Information
Embedded Options Available	No
Memory Specifications
Max Memory Size (dependent on memory type)	128 GB
Memory Types	DDR4, DDR3
Maximum Memory Speed	2400 MHz
Max # of Memory Channels	2
ECC Memory Supported ‡	Yes
Expansion Options
Scalability	1S Only
PCI Express Revision	2.0/3.0
PCI Express Configurations ‡	x4 x8 x16
Max # of PCI Express Lanes	32
I/O Specifications
# of USB Ports	8
USB Revision	2.0/3.0
Total # of SATA Ports	6
Integrated LAN	Yes
General Purpose IO	Yes
UART	Yes
Networking Specifications
Interfaces Supported	SFI, KR, KX, 1000Base-T, 10GBase-T
Package Specifications
Sockets Supported	FCBGA1667
Max CPU Configuration	1
Package Size	37.5 mm x 37.5 mm
Advanced Technologies
Intel® Turbo Boost Technology	2.0
Intel® Hyper-Threading Technology ‡	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
Intel® TSX-NI	Yes
Intel® 64 ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Security & Reliability
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® Trusted Execution Technology ‡	Yes
Execute Disable Bit ‡	Yes
Intel® OS Guard	Yes
