Cable/adaptor specification:Adapter

Your price: 107,16 €

Add to basket:

pcs
Add
Availability: 1 psc in stock

Price information

Your price excl. SNC:
107,09 €
  • Retail price:
    107,08 €
  • SNC:
    0,07 €
  • AO:
    0,00 €
  • Your price inc. sales tax:
    129,66 €
Code:
795060
P/N:
CSV-6400
Warranty:
24 Month(s)
Manufacturer:
Club 3D
Representative in the EU:
EAN:
8719214470890
Compare

Particulars

Model

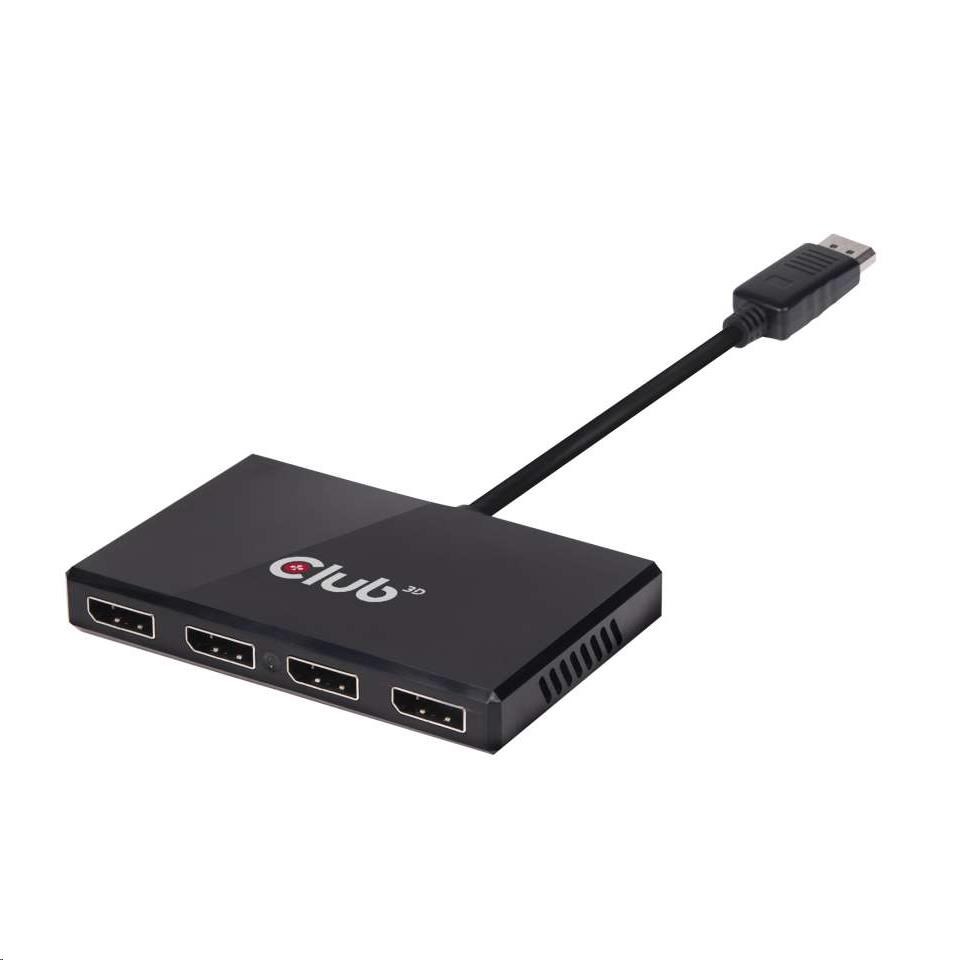

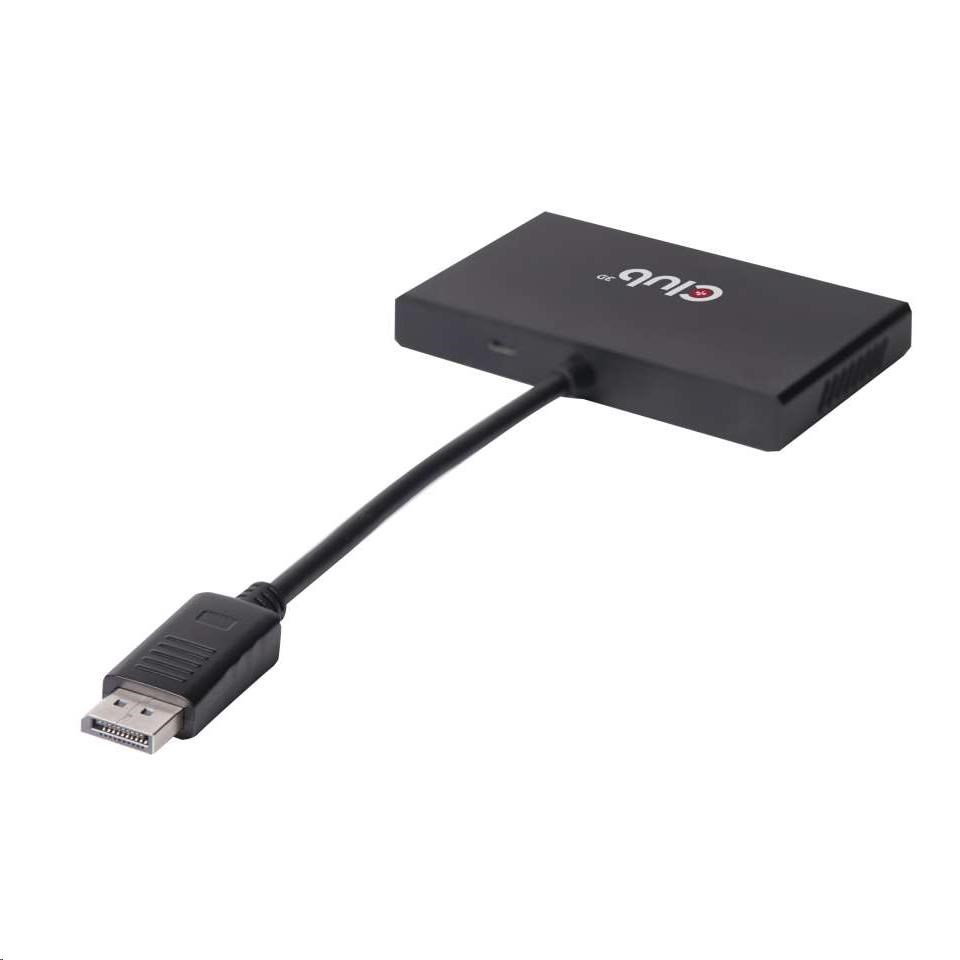

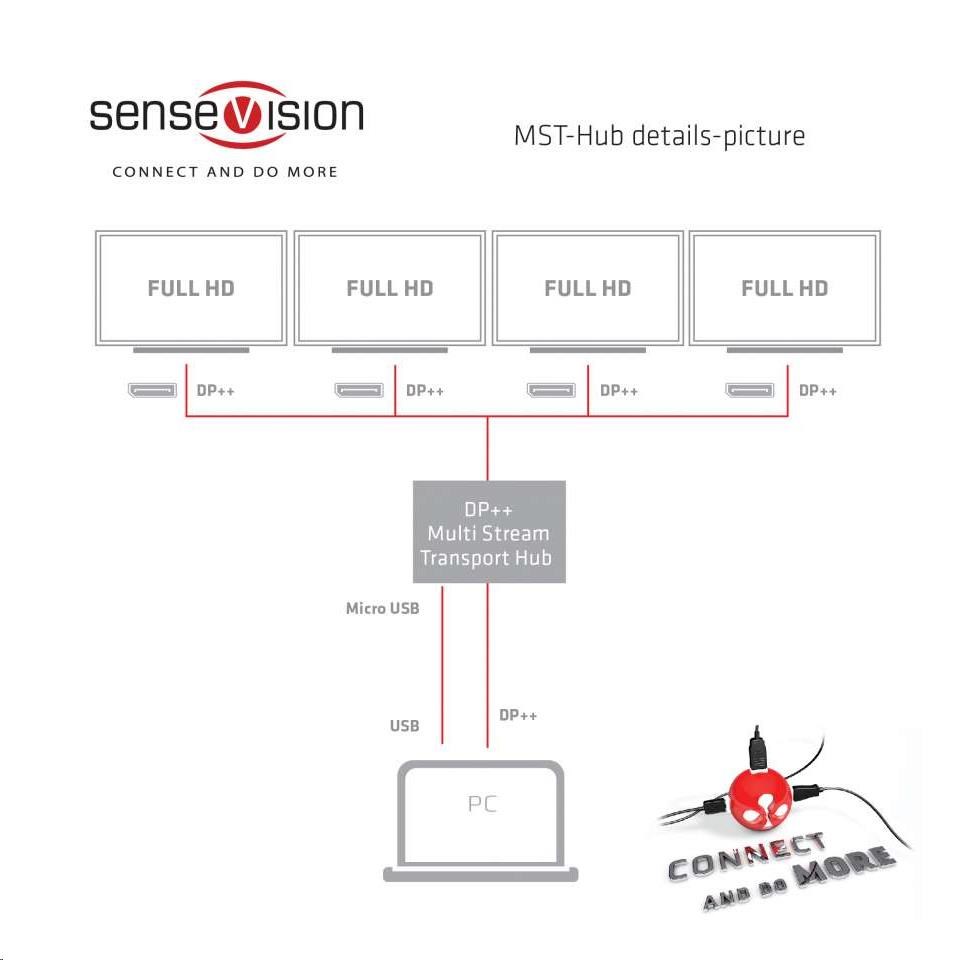

Product Name: Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Quad Monitor USB Powered
Product Series: Video Splitters
Item Code: CSV-6400
EAN Code: 8719214470890
UPC Code: 841615101085

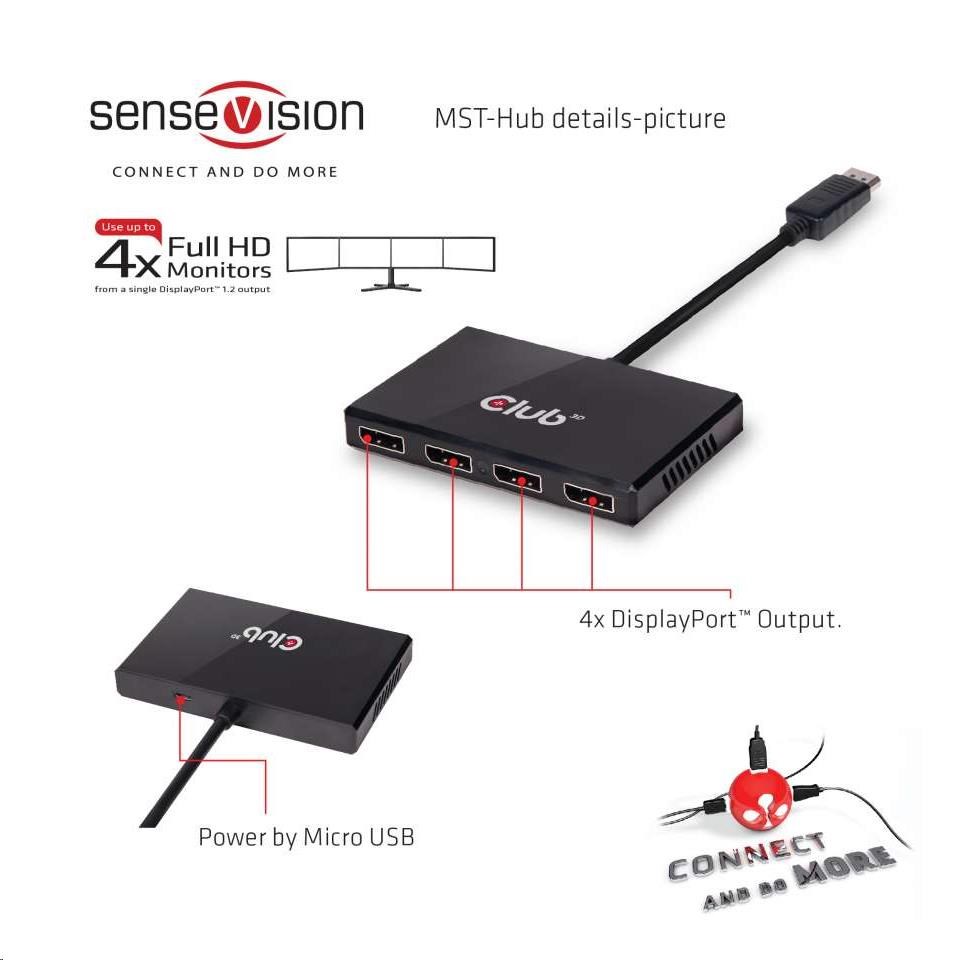

Input:
DisplayPort™ 1.2 Male; 1x Micro USB Female for Power
Output:
4x DisplayPort™ Female
Features
• Compliant with: DisplayPort™ v1.2a, DisplayPort™ v1.1a, VESA DDM Standard, HDCP V2.0,Display Id,and EDID V1.4
• Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source
• Outputs support DisplayPort™ Dual Mode (DP++)
• Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444
• Supports Advanced Wide EyeTM SerDes technology enables high Jitter performance
• Supported output resolutions:
- for Dual Monitor setup: up to 2x 2560X1600p @ 60Hz
- for Tripple Monitor setup: up to 3x 1920x1080p @ 60Hz
- for Quad Monitor setup: up to 4x 1920x1080 @ 60Hz
• Supports AMD Eyefinity™
• Compatible with Microsoft® Surface Pro and Intel NUC platforms
• Works with AMD, Nvidia and Intel Graphics solutions
Note: Some Notebooks/Tablets/Mini PC's have Integrated Graphics Chips which do not support more than 3 screens in total. Please consult with your device specifications for further information.
OS Support:
Microsoft Windows 10/ 8.1
Other info:
• Hub size LxWxD: 66 x 116 x 13 mm
• Product Weight: 134 gr.
• Cable Length DP: 180 mm
• Cable Length USB: 1000 mm
• Plastic Bag: 160x 240 mm.
• Plastic Bag Weight: 8 gr.

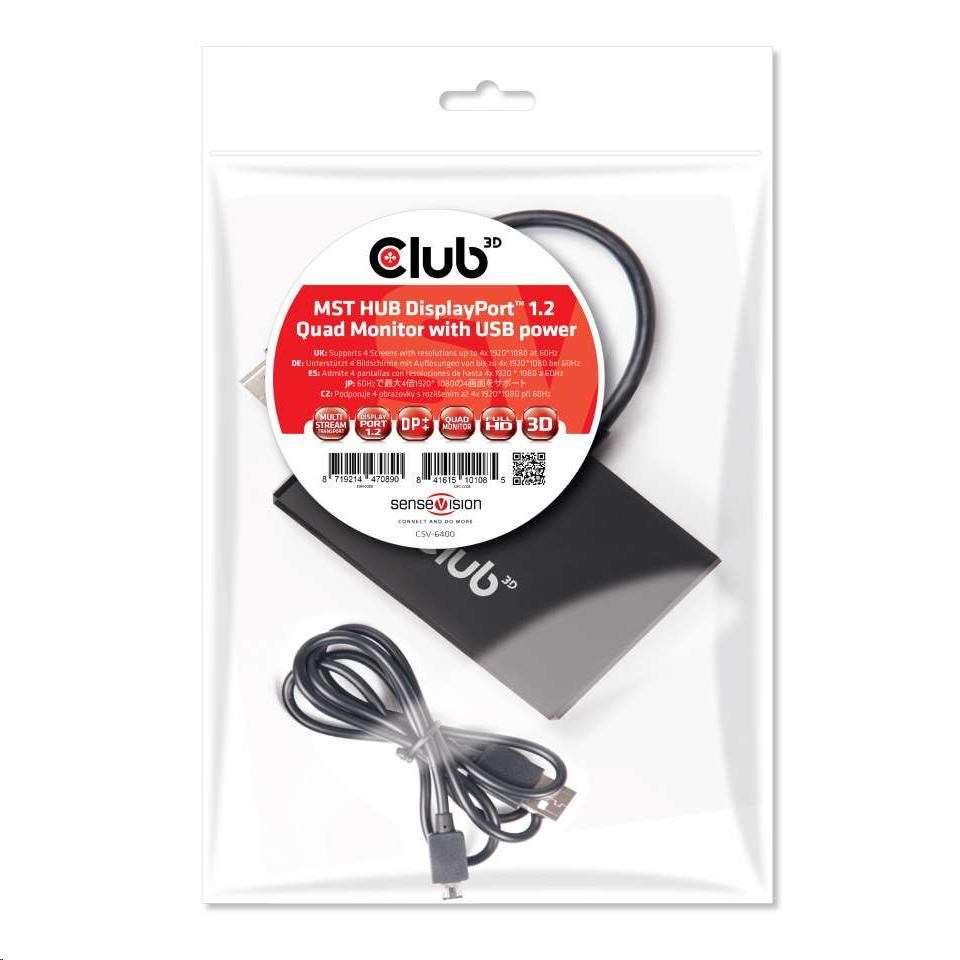

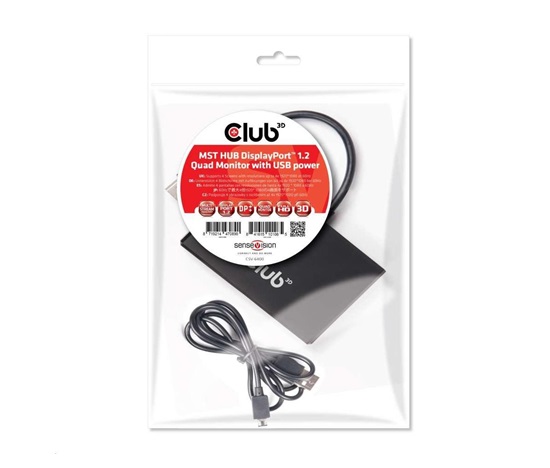

In the box:
• Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Quad Monitor USB Powered

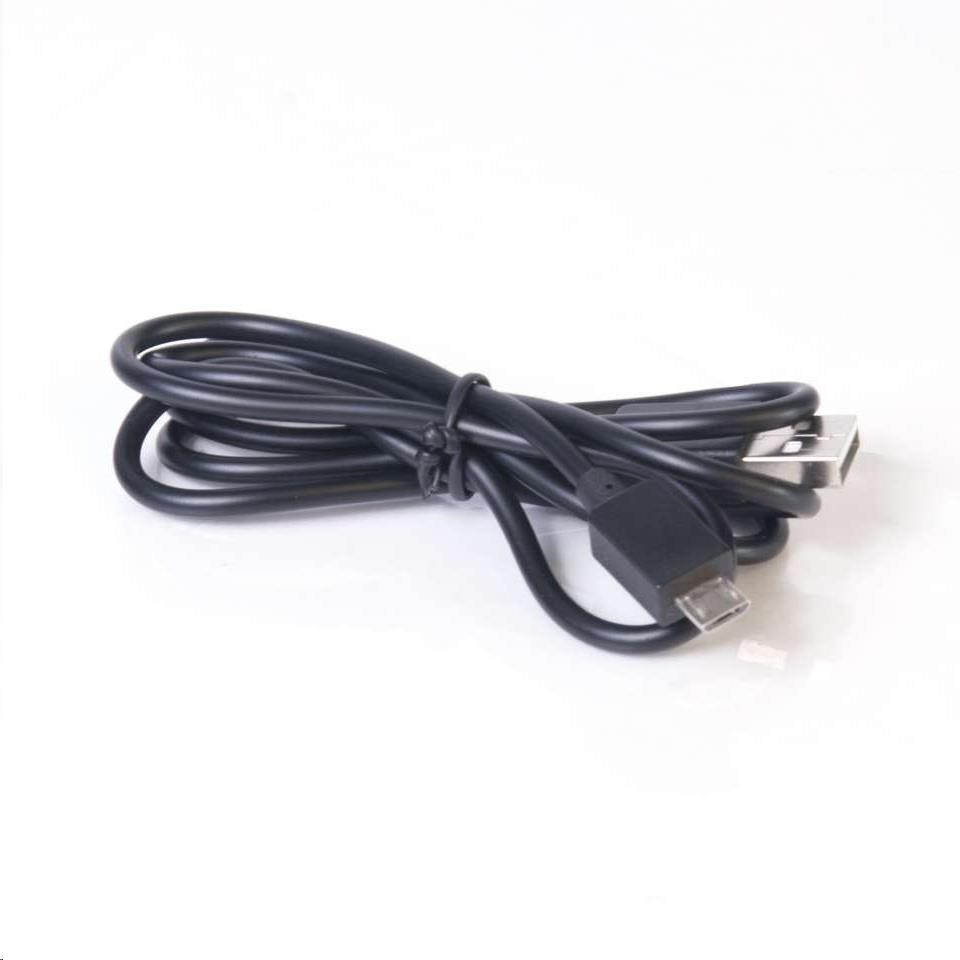

• USB to Micro USB Cable for power
• Quick install guide


In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
