Club3D MINI USB 3.0 TYPE C DOCKING STATION

Club3D MINI USB 3.0 TYPE C DOCKING STATION

Accessory type:Docking Stations and Replicators

Your price: the product is no longer available
  • Your price excl. SNC:
    -
  • Retail price:
    -
  • SNC:
    -
  • AO:
    -
  • Your price inc. sales tax:
    -
Compare
  • Code:
    795068
  • P/N:
    CSV-1532
  • Warranty:
    24 Month(s)
  • Manufacturer:
    Club 3D
  • EAN:
    8719214470487

Particulars

USB Type C to VGA + USB 3.0 + USB Type C Charging Mini Dock
CSV-1532 The SenseVision USB Type C to VGA + USB 3.0 + USB Type C Charging Mini Dock is a portable and indispensable tool for your USB Type-C enabled laptop or Ultrabook featuring DisplayPort™ Alternate Mode. Add an analog VGA monitor with up to WQXGA 2560x1600p resolution through the D-Sub output while the USB 3.0 Type-A port connects your USB Sticks, Peripherals and HDD’s.

It also offers a Type-C PD input which charges your device with up to 60Watt at the same time. Supports Microsoft Windows® and Apple OS X, requires DisplayPort™ Alt Mode.


TECHNICAL SPECIFICATIONS

Product Name USB 3.0 Type-C to VGA and USB Mini Docking Station
Product Series SenseVision
Weight 51g
Connector Length 55mm
Item Code CSV-1532
EAN 8719214470487
UPC Code 841615100613
Interface 1x USB 3.0 Type-C male
Output Configuration 1x D-Sub VGA female
1x USB 3.0 Type-A female (for Data)
1x USB 3.0 Type-C female (for Charging)
Package Contents SenseVision USB 3.0 Type C to VGA and USB Mini Docking Station
Quick install guide
Features Innovative Portable Design

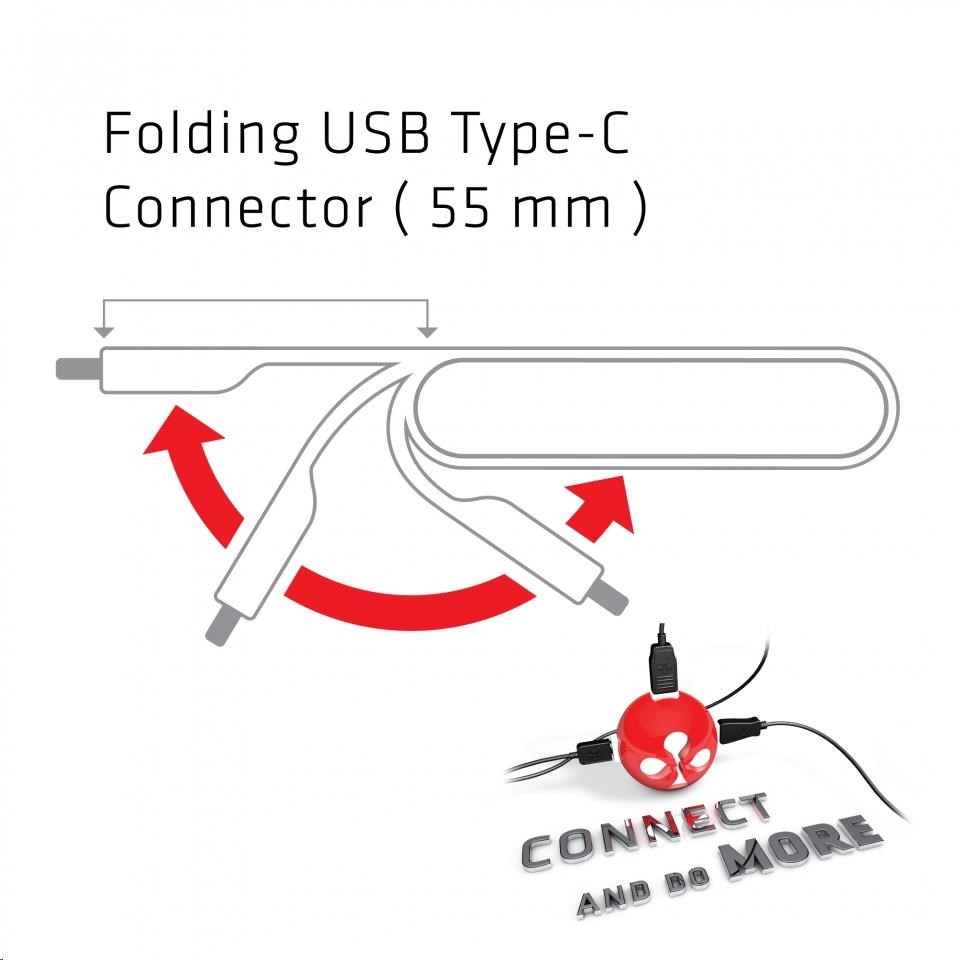

Folding USB Type C Connector
Supports analog VGA monitor
Supports up to 270MHz video pixel clock

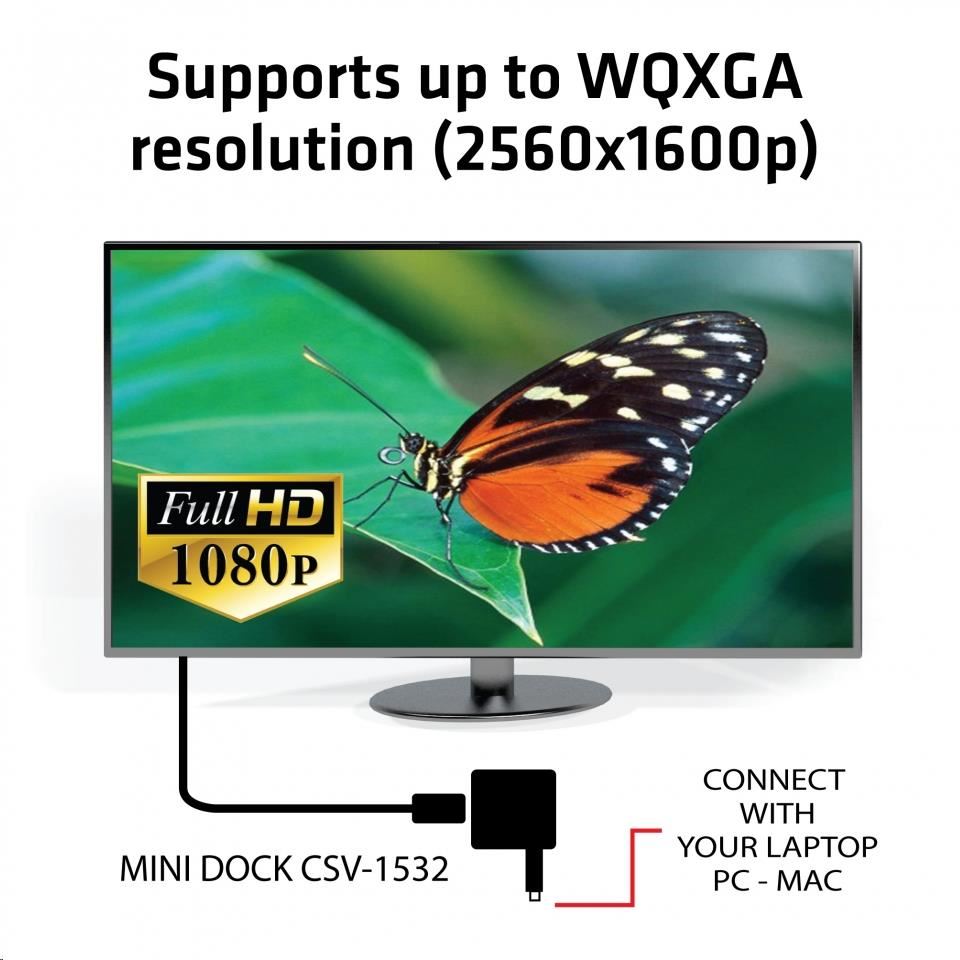

Supports up to WQXGA resolution (2560x1600p)
1x USB 3.0 (3.1 Gen1) Type-A port for Data (max 5Gbps)
1x USB Type C PD port (5V/ 1.5A, 20V/3A)
Requires Type C DisplayPort™ Alt Mode
Miminum Requirements CPU: AMD or Intel Dual Core CPU 2GHz or higher processor clock.
GPU: AMD, Intel or Nvidia
RAM: 1GB or higher
USB port: Type C must support DisplayPort™ Alt Mode
30MB of available disk space
Supported Operating Systems Windows 7 (32 & 64 Bit)
Windows 8.1 (32 & 64 Bit)
Windows 10 (32 & 64 Bit)
Apple OS X

Technical parameters
