Club3D MINI DISPLAY PORT 1.4 MALE TO HDMI 2.0a FEMALE 4K 60HZ UHD/ 3D ACTIVE ADAPTER - HDR SUPPORT
Cable/adaptor specification:Adapter
Your price:
32,44 €
Add to basket:
Availability:
15 psc in stock
Price information
Your price excl. SNC:
32,44 €
-
Retail price:
32,44 €
-
SNC:
0,00 €
-
AO:
0,00 €
-
Your price inc. sales tax:
39,25 €
Particulars
| Model |
| Product Name: Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter |
| Product Series: Adapters |
| Item Code: CAC-1180 |
| EAN Code: 8719214470869 |
| UPC Code: 841615101054 |
| Features |
| • DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR |
| • Video Stream Handling: |
| - Up to 600Mhz dual pixel path and 16bpc |
| - RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format |
| - Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec) |
| • DisplayPort™ to HDMI™ Stereoscopic 3D Transport |
| - Frame Sequential to Stacked Top-Bottom Conversion |
| - Pass-trough of ther 3D Formats |
| - LPCM and compressed Audio encoding formats |
| - Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel |
| • HDCP Support |
| - HDCP 1.3 to HDCP 1.4 repeater function |
| - HDCP 2.2 to HDCP 1.4 and 2.2 repeater Function |
| • HDMI™ transmitter |
| - Compliant to HDMI™ specifications version 2.0b |
| - 600MHz max TMDS character clock |
| - High Daynamic Range (HDR) support both Static- and Dynamic HDR. |
| - CEC Support - snooping, tunneling |
| • Max Video resolution and color depth on HDMI™ output |
| - 4K 60Hz RGB/YCbCr 4:4:4, 8bpc |
| - 4K 60Hz YCbCr 4:2:2, up to 12bpc |
| - 4K 60Hz YCbCr 4:2:0, up to 16bpc |
| - 4K 30Hz RGB/YCbCr 4:4:4, up to 16bpc |
| Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b. |
| Input: |
| Mini DisplayPort™ 1.4 male |
| Output: |
| HDMI™ 2.0b female |
| Operating Systems |
| Windows 10, Apple OS X |
| Other info |

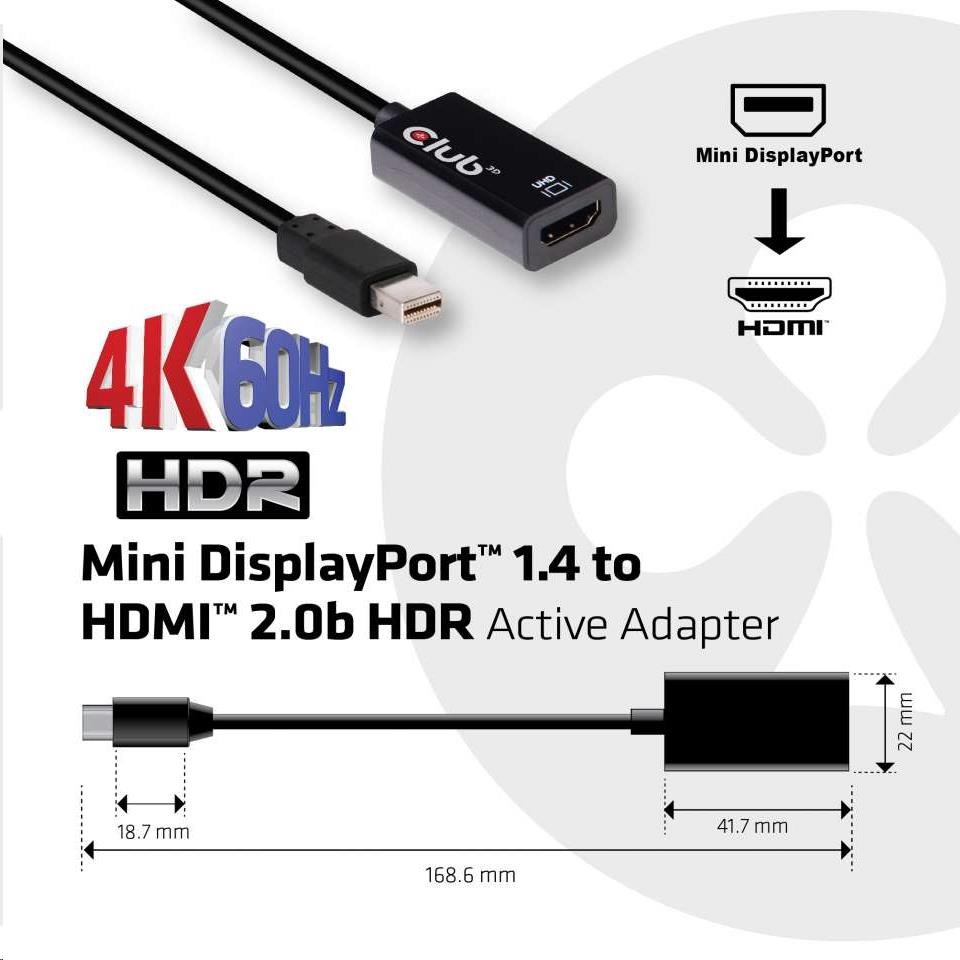

| • Boxsize: 182 x 60 x 35mm. |
| • Cable: 184 x 20 x 11 mm. |
| • Weight: 30 gr. |
| • Meets ROHS, FCC, and CE EMI requirements |
| • Made in China |
| In the box: |
| Club 3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
Technical parameters
- Cable/adaptor specification: Adapter
