Club3D cestovní nabíječka PPS 45W GAN technologie, Dual port USB Type-C, Power Delivery(PD) 3.0 Support

Device:Mobile phone, Tablet; Accesories type:Chargers

Your price: 33,98 €

Add to basket:

Quantity

pcs

Add

Availability: 1 psc in stock

Price information

Your price excl. SNC:

33,94 €

Retail price:
33,94 €
SNC:
0,04 €
AO:
0,00 €
Your price inc. sales tax:
41,12 €

Code:

795215

P/N:

CAC-1909EU

Warranty:

24 Month(s)

Manufacturer:

Club 3D

Representative in the EU:

EAN:

8719214472382

Particulars

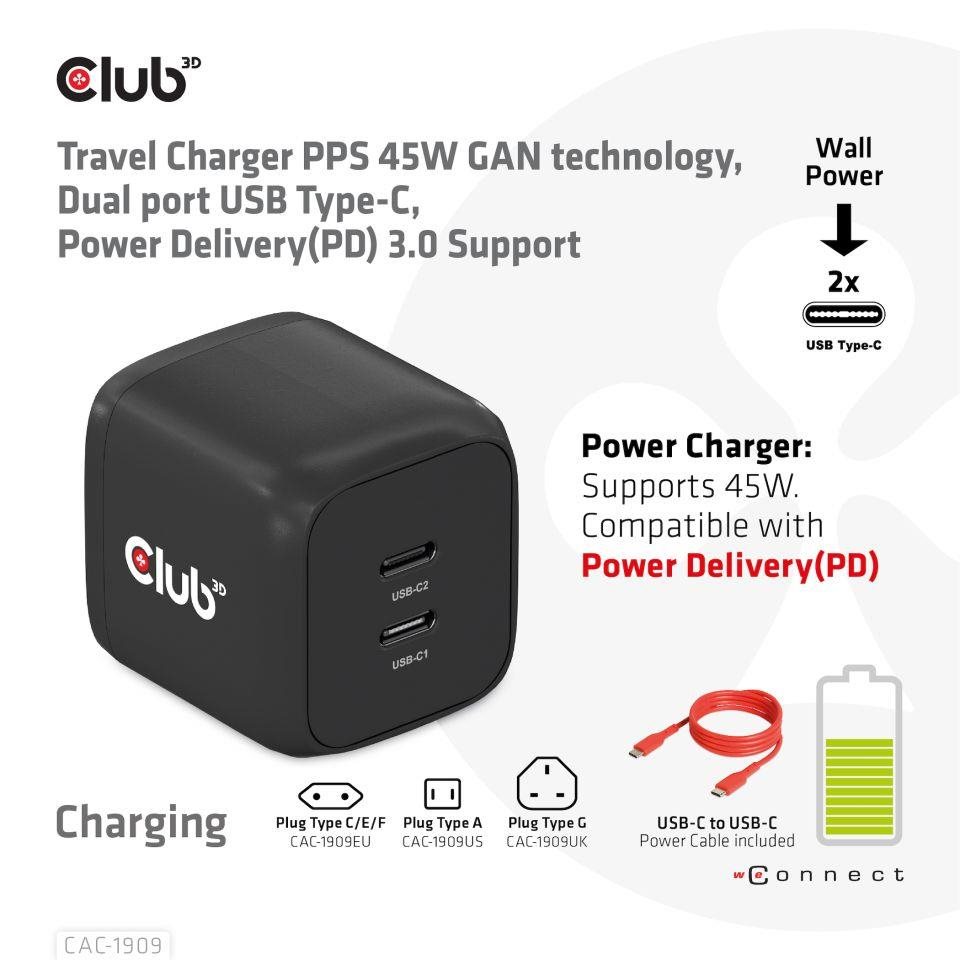

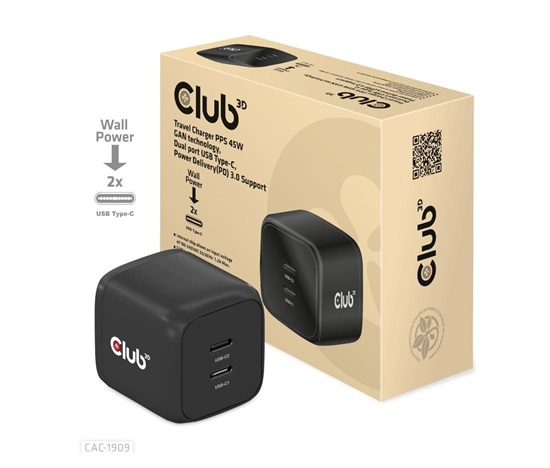

Travel Charger PPS 45W GAN technology, Dual port USB Type-C, Power Delivery(PD) 3.0 Support

The Club3D CAC-1909 Travel Charger PPS 45W GAN technology, Dual port USB Type-C, Power Delivery(PD) 3.0 Support. Compact size & Superior Performance: GAN technology chipset makes this charger 50% smaller than traditional 45W charger, small enough to carry anywhere. The Programmable Power Supply(PPS) 45W wall charger match a variety of PD devices from smart phones to laptops, one for all making charging simple. This wide compatibility charger will be your convenient companion during your business trip or vacation. The Power Charger is light weight without compromising on Quality and safety. By adopting Power Delivery(PD) charging technology, this versatile Power Charger provides you with charging function through Dual USB Type-C interface, you can charge any connected Mobilephone / Tablet / NoteBook. Furthermore all it needs is a free USB Type-C port on your Dock/NoteBook/Tablet/ Mobile phone to be charged via the bundled USB cable.

Internal chip allows an input voltage of 100-240VAC 50/60Hz 1.2A Max.
GAN technology
Programmable Power Supply(PPS)

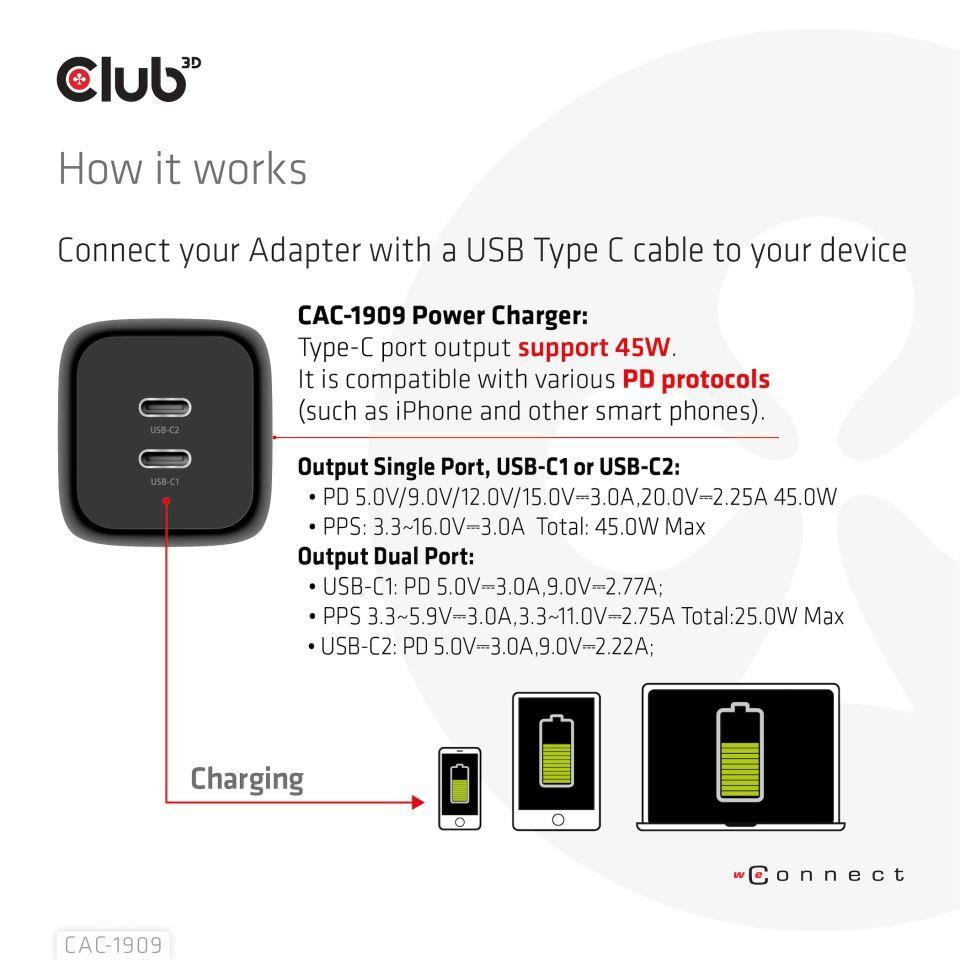

45W of output power in total:
- Output Single Port, USB-C1 or USB-C2:
  - PD 5.0V/9.0V/12.0V/15.0V?3.0A,20.0V?2.25A 45.0W
  - PPS: 3.3~16.0V?3.0A Total: 45.0W Max
- Output Dual Port:
  - USB-C1: PD 5.0V?3.0A,9.0V?2.77A;
  - PPS 3.3~5.9V?3.0A,3.3~11.0V?2.75A Total:25.0W Max
  - USB-C2: PD 5.0V?3.0A,9.0V?2

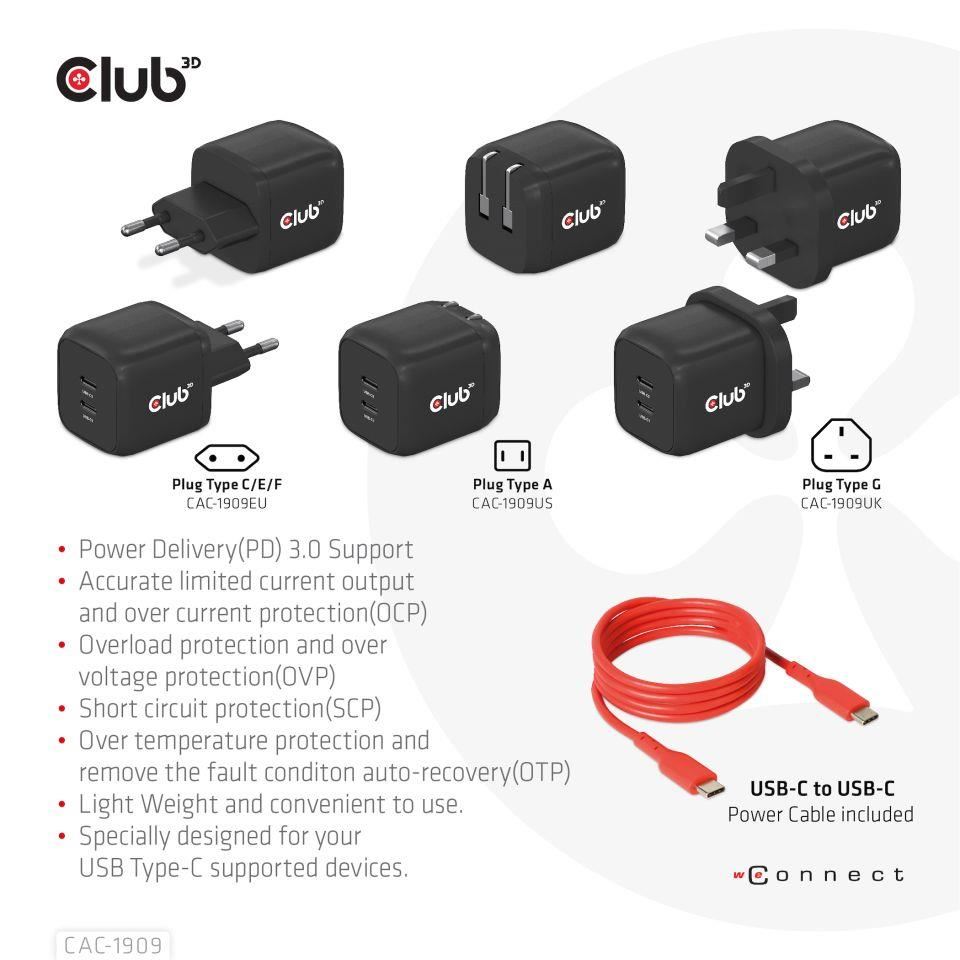

  - Power Delivery(PD) 3.0 Support
  - Accurate limited current output and over current protection(OCP)
  - Overload protection and over voltage protection(OVP)
  - Short circuit protection(SCP)
  - Over temperature protection and remove the fault conditon auto-recovery(OTP)
  - Compliant with CE, FCC standards.
  - Light Weight and convenient to use.
  - Specially designed for your USB Type-C supported devices.

TECHNICAL SPECIFICATIONS

OS Support	N/A

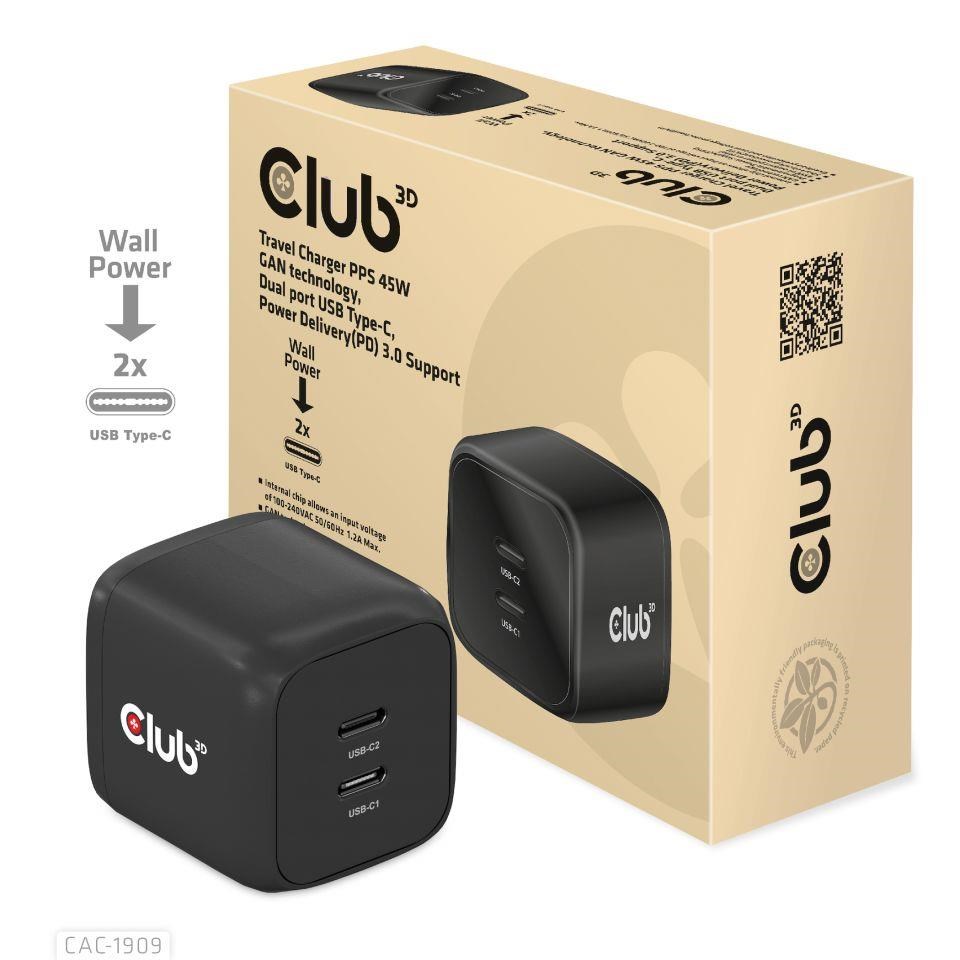

In the box	• CAC-1909 Travel Charger PPS 45W GAN technology, Dual port USB Type-C, Power Delivery(PD) 3.0 Support • 1x RED (Power ONLY) USB Type-C cable(1 m / 3.28 ft) for connecting to Host(max. 100W)
Available Interfaces	Input: • 1x Mains connector Output: • 2x USB Type-C Female

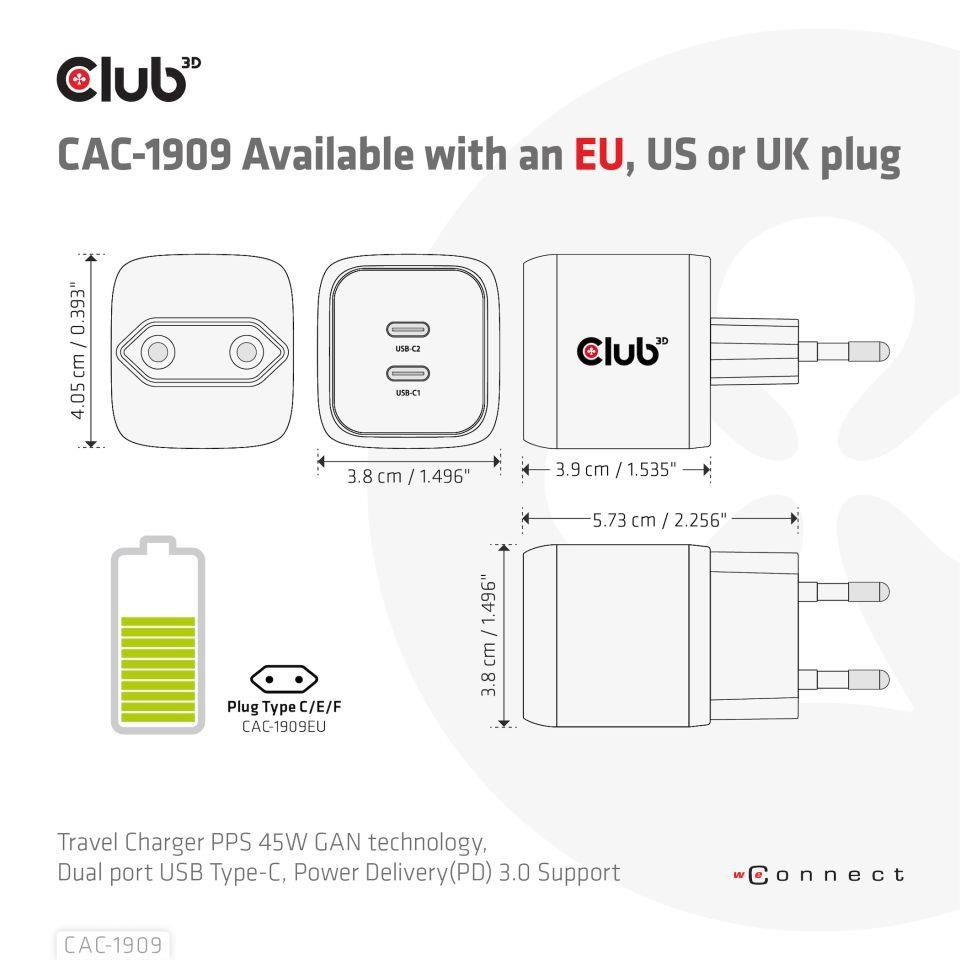

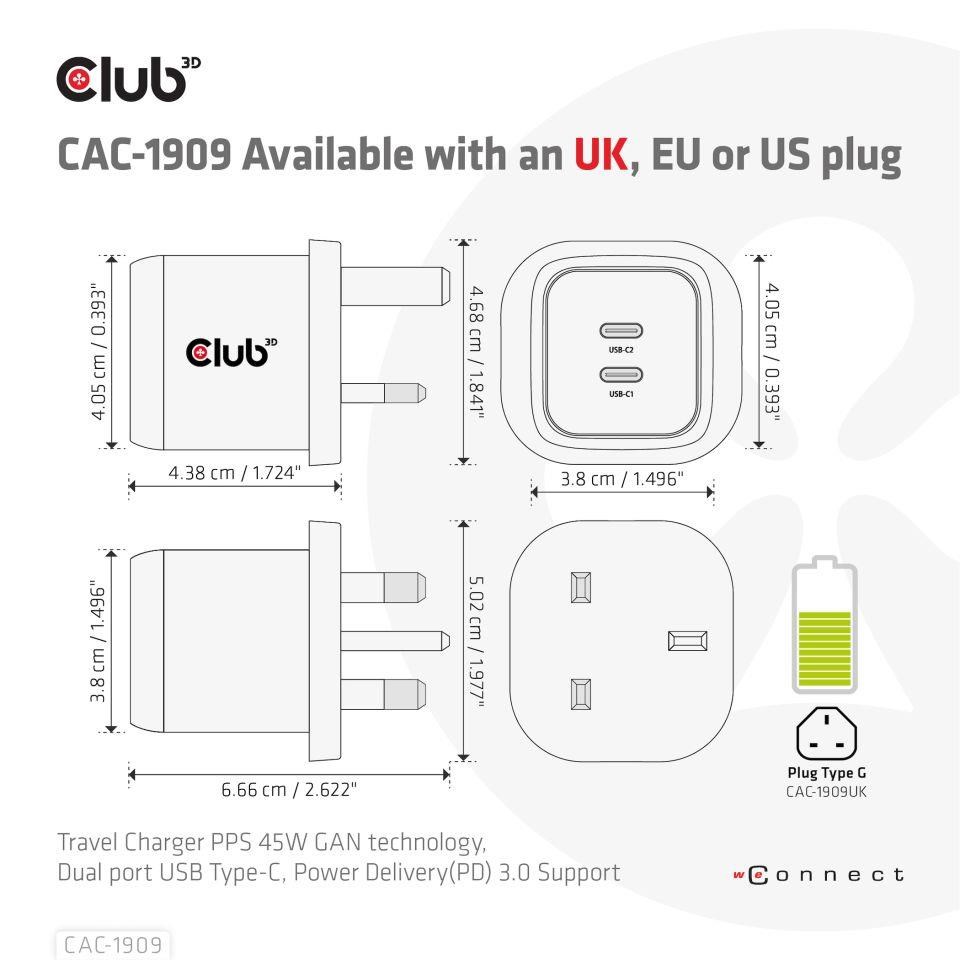

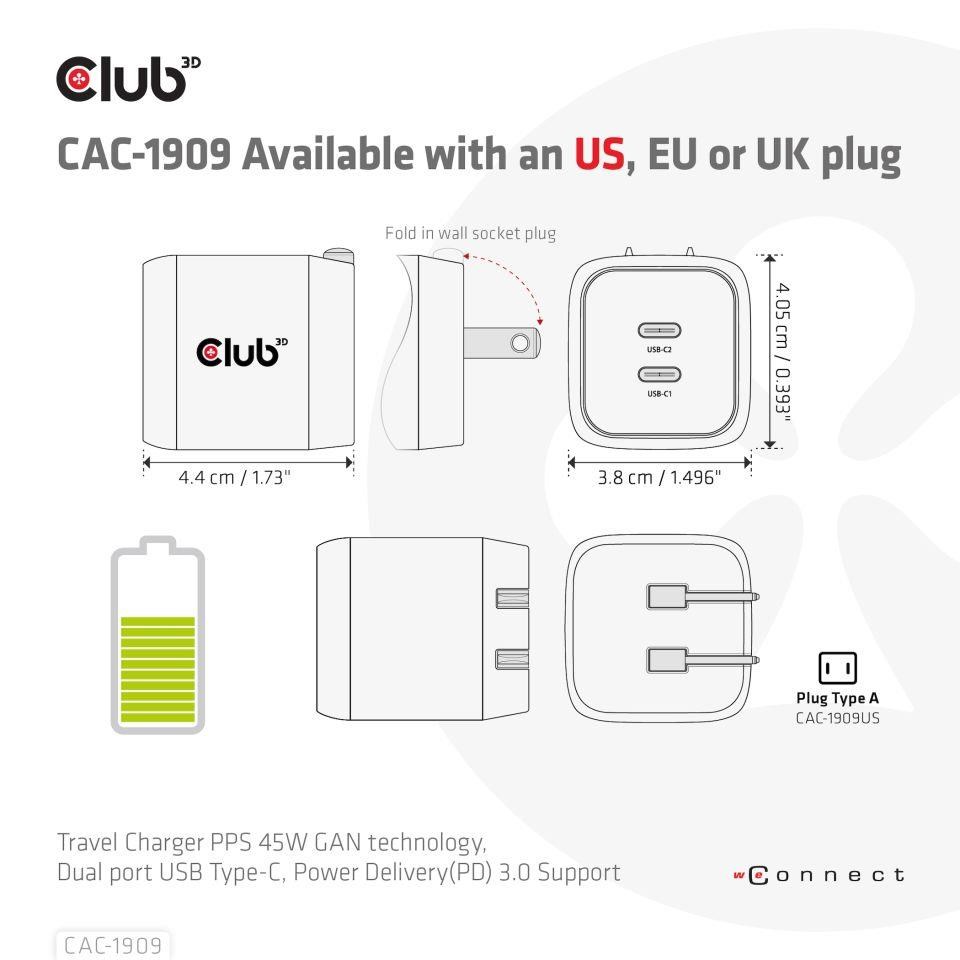

Other info	• Box size: 11 x 13 x 5.5cm / 4.33 x 5.12 x 2.16" • Device size: 7.6 x 3.8 x 4.05 / 2.99 x 1.5 x 1.59" • USB (Power) Cable length approx.: 1 m / 3.28 ft • Device Weight: 87 gr / 3.07 oz • USB Cable Weight: 35 gr / 1.2 oz • Box Weight: 40 gr / 1.41oz • LPDE Bag Weight: 9 gr / 0.3 oz • Total Weight(depending on PowerPlug) approx.: 171 gr / 6.03 oz • Meets ROHS, FCC, and CE EMI requirements

In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

Technical parameters

Device: Mobile phone
Device: Tablet
Accesories type: Chargers
