BAZAR - ASUS MB Sc LGA1200 PRIME H410M-R-SI, Intel H410, 1xHDMI, 1xDVI, 1xVGA, mATX - Po opravě (Bez příslušenství)

Bazaar

Format:micro ATX; Chipset:Intel; Socket:Socket 1200; Motherboard memory module type:DDR4; RAID support:No; PCI express 16x:1; COM port; LPT port; Integrated graphics card:Yes (CPU); Integrated LAN card:1

Your price: 40,29 €

Add to basket:

Quantity

pcs

Add

Availability: 1 psc in stock

Price information

Your price excl. SNC:

40,23 €

Retail price:
40,21 €
SNC:
0,06 €
AO:
0,00 €
Your price inc. sales tax:
48,75 €

Code:

1887049

P/N:

90MB1520-M0ECY0 //BAZAR

Warranty:

6 Month(s)

Manufacturer:

Asus

Representative in the EU:

EAN:

1887049

Particulars

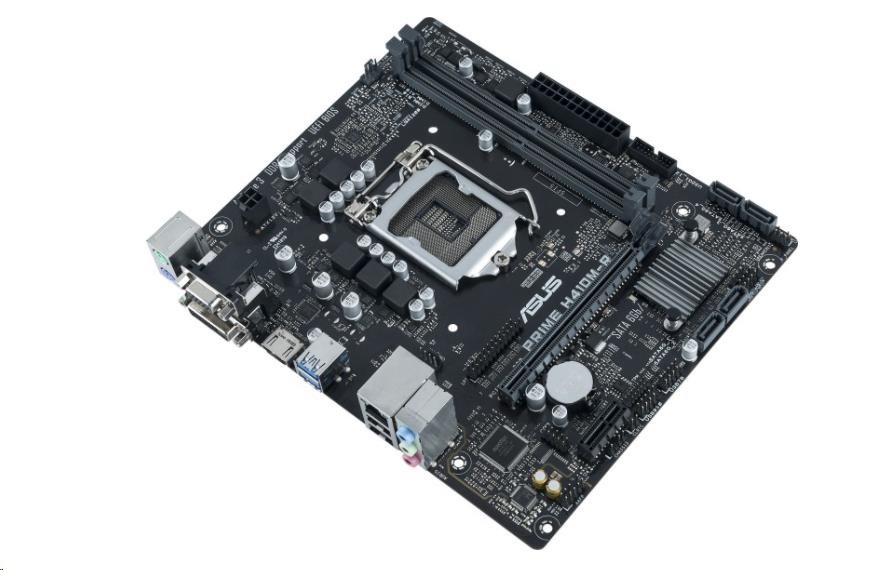

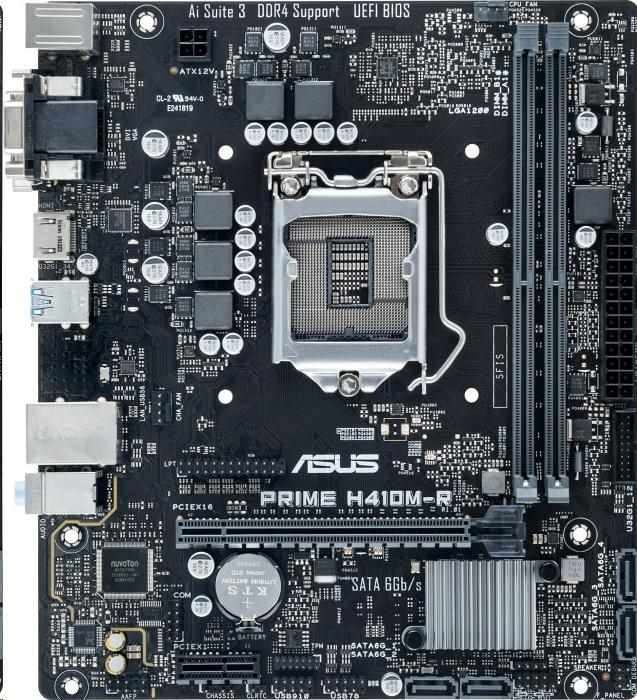

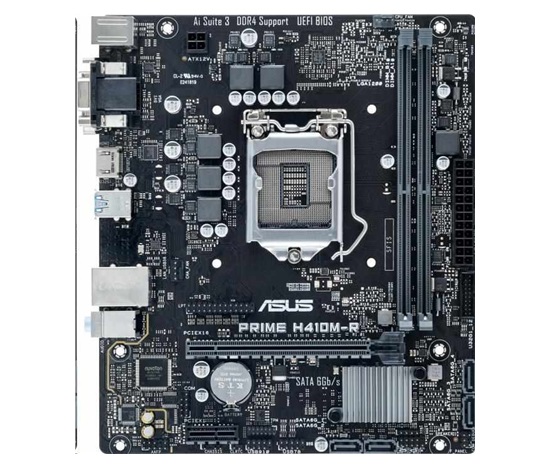

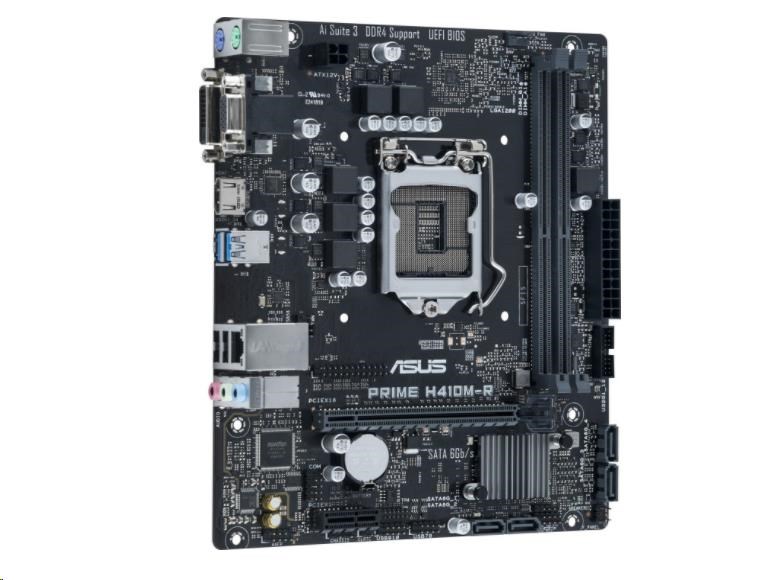

PRIME H410M-R

TECHNICAL SPECIFICATIONS

CPU	Intel Socket LGA1200 for 10^th Gen Intel Core^TM, Pentium Gold and Celeron Processors Supports up to Intel 65W Cpu Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. *Intel Terbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H410 Chipset
Memory	2 x DIMM, Max. 64GB, DRR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem
Graphics	1 x HDMI 1.4b 1 x D-Sub 1 x DVI-D *Graphics specifications may very between CPU types.
Expansion Slots	Intel 10^th Gen Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) Intel H410 Chipset 1 x PCIe 3.0 x1 slot
Storage	Total supports 4 x SATA 6Gb/s ports Intel H410 Chipset 4 x SATA 6Gb/s ports
Ethernet	1 x Realtek RTL8111H 1Gb Ethernet
USB	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)
USB	Front USB (Total 6 ports) 1 x USB Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Support up to 24-Bit/192kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers

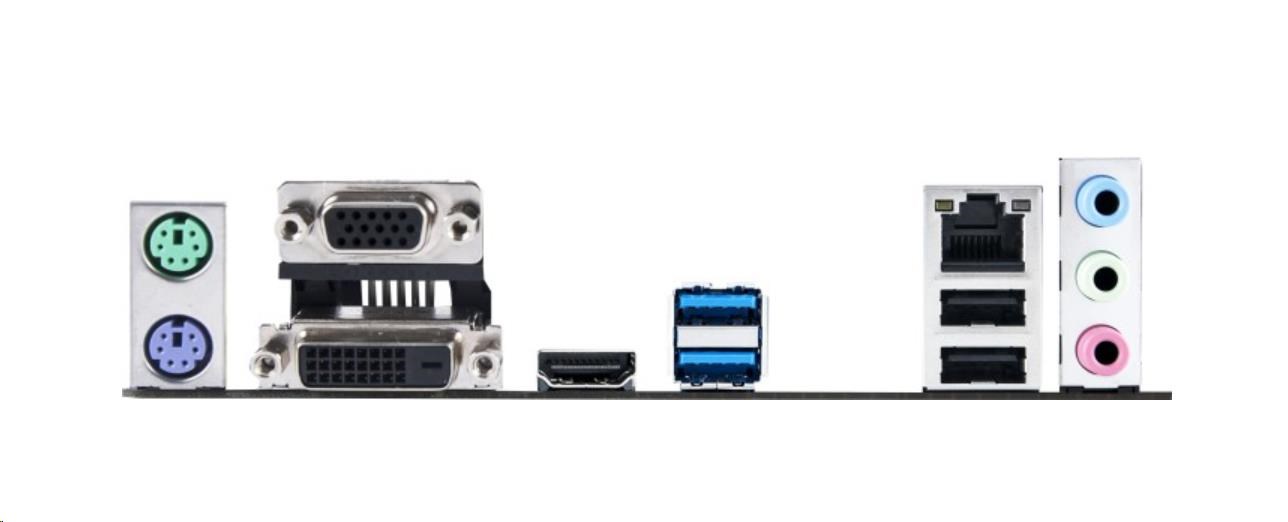

Back Panel I/O Ports	2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x D-Sub port 1 x DVI-D port 1 x Realtek RTL8111H 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port
Internal I/O Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Software Features	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM PC Cleaner -ER update AI Changer Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 10 - 64 bit
Form Factor	mATX Form Factor 8.4 x 7.2 inch (21.3 x 18.3 cm)

Technical parameters

Format: micro ATX
Chipset: Intel
Socket: Socket 1200
Pro procesory: Intel
Motherboard memory module type: DDR4
Počet paměťových slotů: 2
M.2 slot: 0
SATA 3: 4
RAID support: No
PCI express 16x: 1
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 1
VGA: 1
DVI: 1
USB 2: 6
USB 3: 4
USB C: 0
3.5mm Jack: Ano
Led Header: Ne
COM port: yes
LPT port: yes
TPM: Ne
